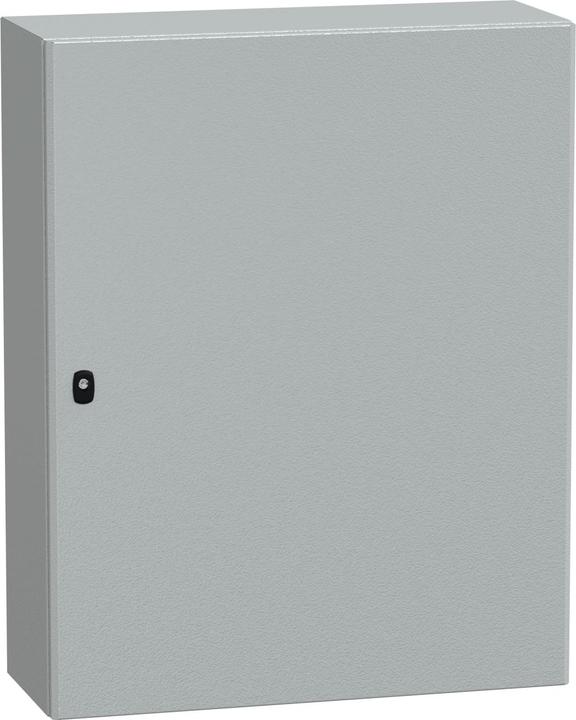

Schneider Electric Enclosure, Spacial 3D ATEX 1000x800x300

Height external: 1000 mm
Width external: 800 mm
External depth: 300 mm
External dimensions: 1000 x 800 x 300 mm
Housing material: Steel
Transparent door: No
IP protection class: IP66
Chassis plate: No
Door lock type: Double latch
Screen connection plate: Yes
Color: Gray
Series: Spacial S3D
Mounting kit: Yes
Approval for hazardous areas: ATEX

4 mounting screws M8x25 and 4 crimped blind nuts. The lock is a quarter-turn latch lock with a key. Spacial S3DEX ATEX enclosures for wall mounting. The Schneider enclosures of the S3DEX series for wall mounting are made of a one-piece, bent, and welded steel sheet with a double-walled, channel-shaped front profile. The multipurpose enclosures have a painted surface in light gray (RAL 7035). Features and benefits: IP66 protection class, meaning the enclosures are dust-tight and provide protection against strong water jets and heavy seas. External mechanical impact resistance of IK10 (protected against objects weighing up to 5 kg from a drop height of 20 cm). The ATEX certification indicates that the enclosures are suitable for use in an explosive atmosphere. Enclosures up to 600 mm in height have a latch lock without a bolt. Enclosures over 600 mm in height have a latch lock with a double latch, totaling three locking points. Simple door with polyurethane seal. External grounding through crimped blind nut (grounding braid not included).
