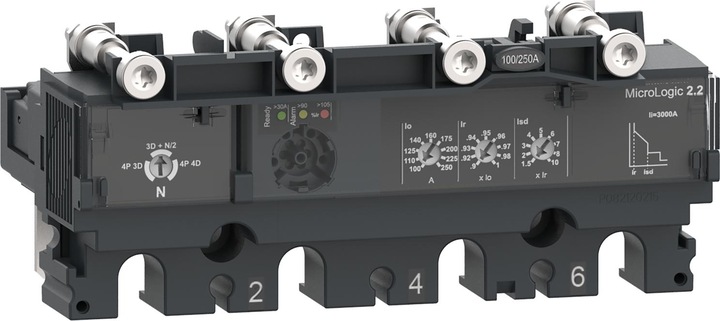

Schneider Electric Current relay MicroLogic 2.2 for ComPacT NSX 160/250 circuit breakers, electronic

Schneider Electric Electron. C1642D160 Manufacturer :Schneider Electric Designation :Electron. MicroLogic 2.2 Type :C1642D160 Overload release Current setting :63...160 A Initial value of instantaneous short-circuit trip setting range :2400 A Final value of instantaneous short-circuit trip setting range :2400 A Rated uninterrupted current Iu :160 A Voltage type for operation :AC Rated control supply voltage Us at AC 50 Hz :690 V Rated control supply voltage Us at AC 60 Hz :690 V Number of poles :4 Short-circuit trip function :delayed With earth fault protection function :no Motor protection version :electronic trip Schneider Electric Electron. C1642D160: more details This MicroLogic 2.2 4d electronic trip unit is a 4-pole electronic trip unit used with ComPacT NSX 160/250 circuit-breakers. This electronic trip unit with a rated capacity of 160 A is the best choice for all standard and special applications. It has adaptable long-term protection against overload. It also provides adjustable short-time protection and fixed instantaneous short-circuit protection. MicroLogic 2.2 indicates overloads with alarm LEDs. The green Ready LED flashes when the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture when combined with the PowerTag NSX and ComPacT NSX basic switch. , EAN: 3606482000070.
