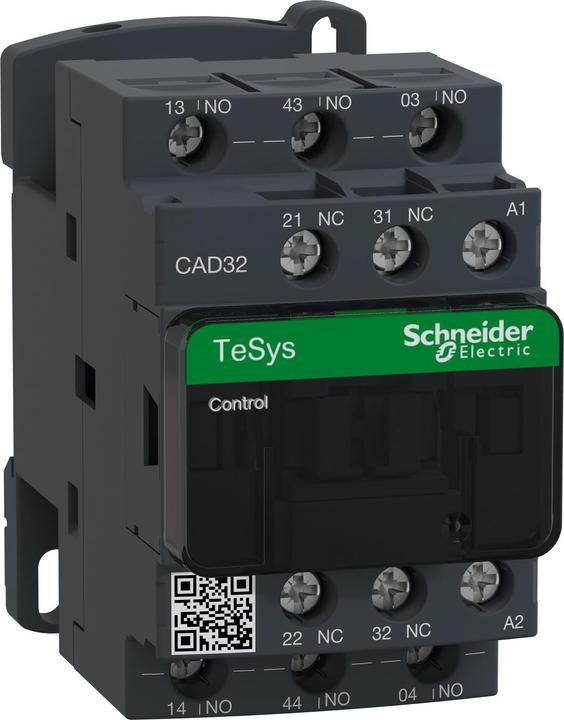

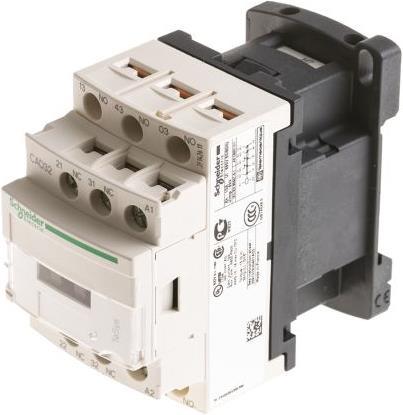

Schneider Electric Control relay,220Vac,3NO+2NC,screw clamp
free shipping
Nominal contact current: 10 A
Range: TeSys
Nominal contact voltage: 690 Vac
Series: CAD3
Contact configuration: 3 normally open, 2 normally closed
Connection type: Screw mounting
Width: 45 mm
Operating temperature range: -5 to +60 °C
For typical auxiliary contact blocks, see part number 394-9970. TeSys control relays feature AC or DC actuating coils with integrated coil fault suppression only for DC versions. Switching category d2.
input voltage | 220 V |
Output voltage | 690 V |
Output current type | AC |
Electric current output | 10 A |
Relay type | Contactor relay |
Item number | 9947569 |
Manufacturer | Schneider Electric |
Category | Relays |
Manufacturer no. | CAD32M7 |
Release date | 22.10.2018 |
External links |
Relay type | Contactor relay |
input voltage | 220 V |
Output voltage | 690 V |
Electric current output | 10 A |
Output current type | AC |
Switching function | Normally open |
Number of openers | 2 x |
Number of closers | 3 x |
Number of switching cycles | 108000 x |
Manufacturer Type | TESys |
Smart Home | Not compatible |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Length | 84 mm |
Width | 45 mm |
Height | 58 mm |
