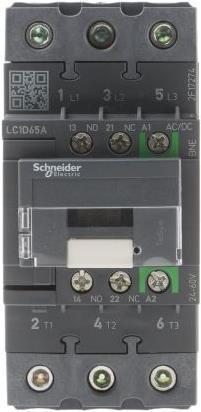

Schneider Electric Contactor 65A 3P AC3 24-60VACDC coil

Range: TeSys D Green
Series: LC1D
Number of poles: 3
Coil voltage: 24 to 60 V ac/dc
Nominal contact current: 65 A
Nominal contact voltage: 690 V ac
Contact number and position: 3 pole normally open contact
Contact configuration: 3 NO contacts
Number of auxiliary contacts: 2
Power rating: 37 kW at 660 to 690 V ac
Connection type: screw mounting
Length: 55 mm
Width: 120 mm
Operating temperature max: +60°C

Contactors TeSys LC1D are professional contactors of the LC1D AC3 series from TeSys. Typical applications include resistive loads and motor control. All models are very reliable and of excellent quality. Features and benefits include 3-pole DIN rail mounting, terminals for screw mounting, and IP20 protection on the front.
