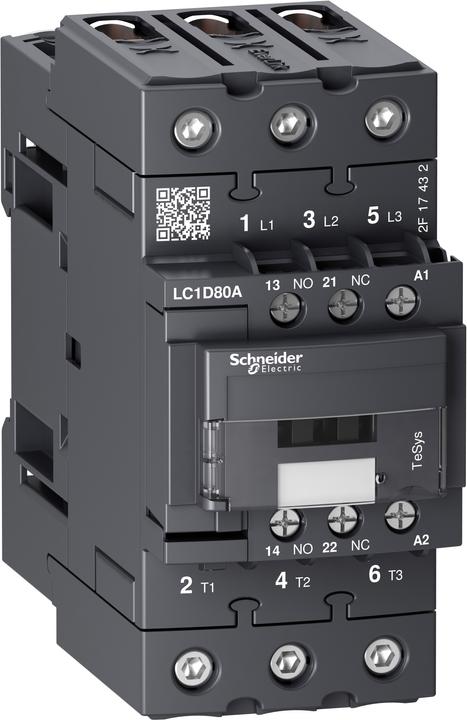

Schneider Electric CONTACTOR 3P 30KW/80A 1S1O 230VAC (LC1D80AP7)

Schneider Electric Contactor LC1D 3p LC1D80AP7

Manufacturer: Schneider Electric
Designation: Contactor LC1D 3p 1S+1Ö, 37 kW, 80 A, 400 V
Type: LC1D80AP7
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Voltage type for actuation: AC
Rated operational current Ie at AC-1, 400 V: 80 A
Rated operational current Ie at AC-3, 400 V: 66 A
Rated operational power at AC-3, 400 V: 37 kW
Rated operational current Ie at AC-4, 400 V: 65 A
Rated operational power at AC-4, 400 V: 30 kW
Rated operational power NEMA: 29.8 kW
Suitable for series installation: Yes
Number of auxiliary contacts as NO: 1
Number of auxiliary contacts as NC: 1
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC, rated operational power at AC-3, 400 V 37 kW, rated operational current Ie at AC-3, 400 V 80 A, coil 230 V AC. Dimensions (WxHxD): 55 x 122 x 120 mm, weight: 0.86 kg. Category AC-3, AC-1. Without integrated wiring module. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts. CCC, CSA, EAC, UL, KC, DNV-GL, LROS (Lloyds register of shipping) certifications. Product standards according to EAN: 3606481312174.
