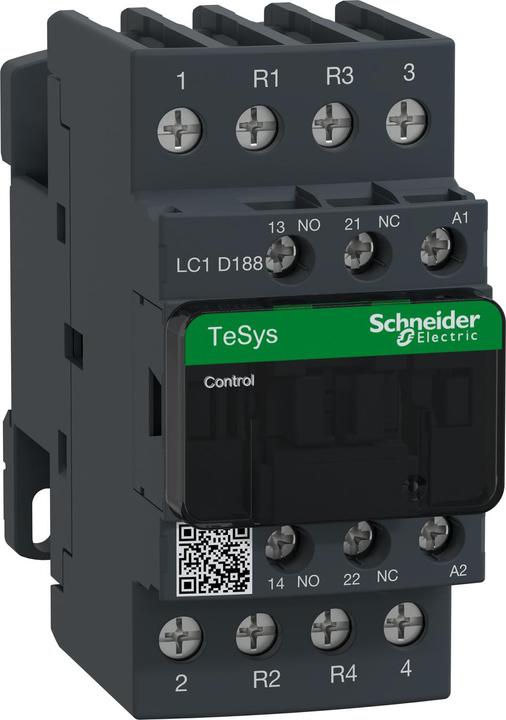

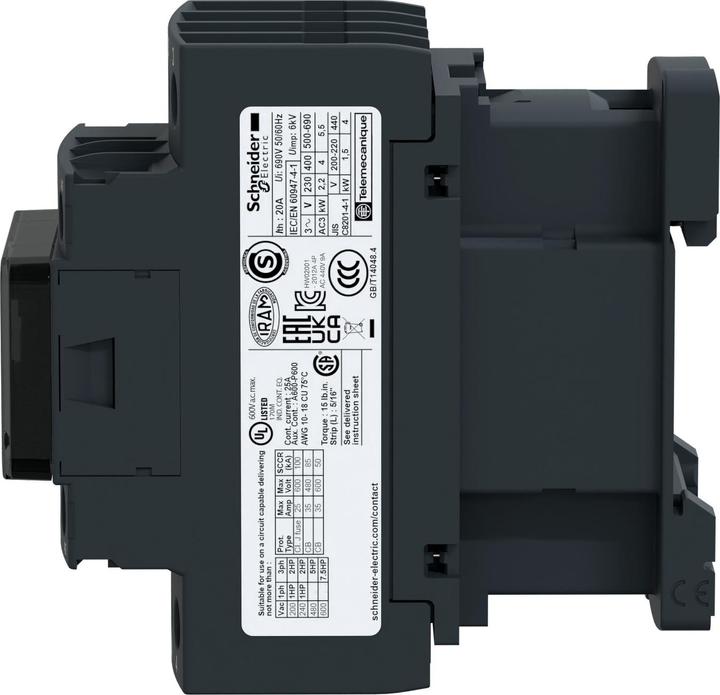

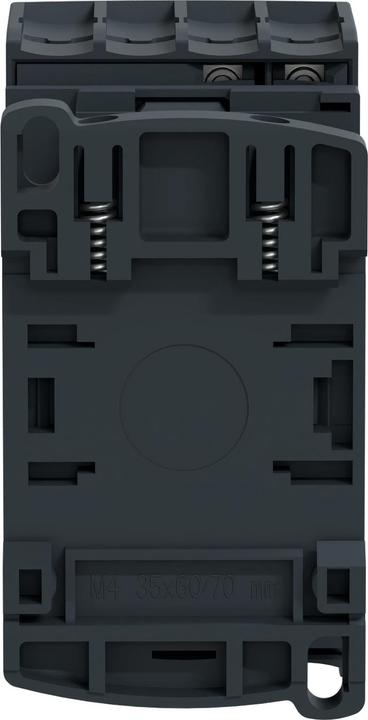

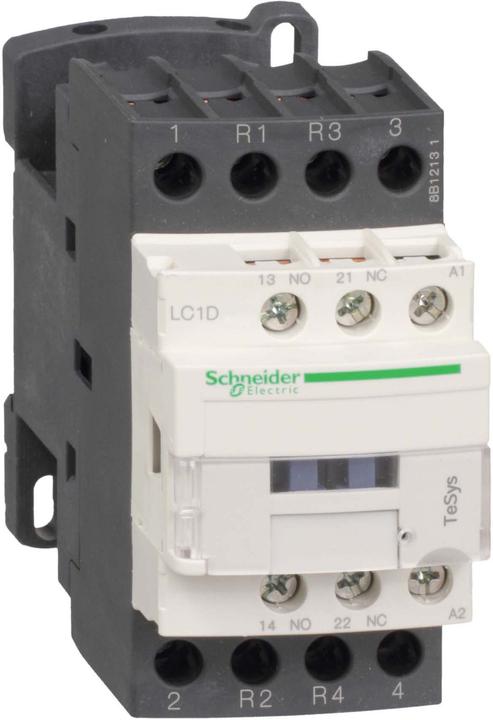

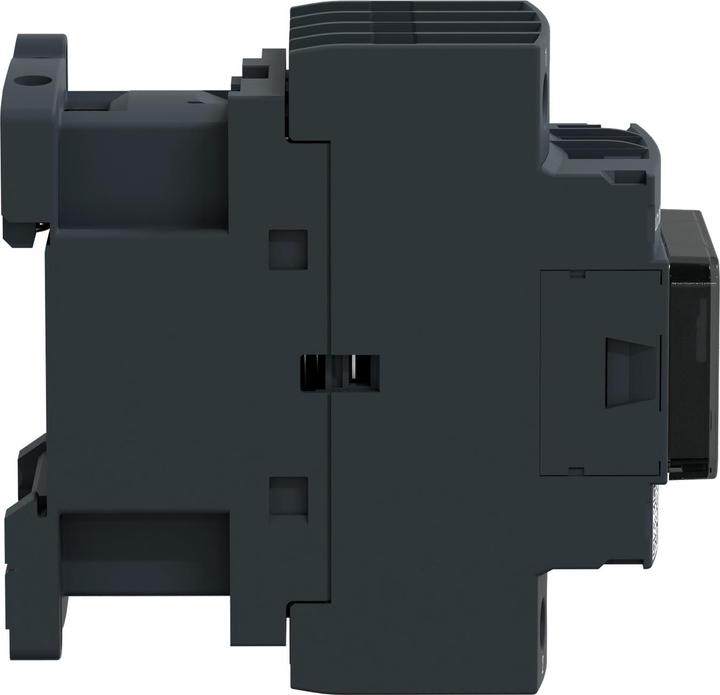

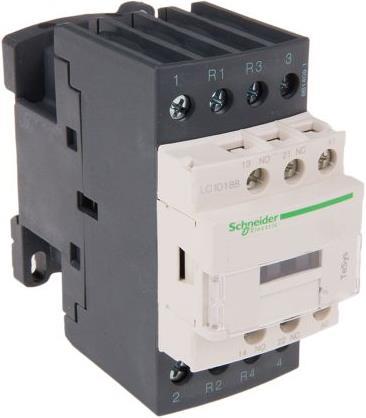

Schneider Electric Contactor 24V 32A

Ratings
BrandMore from Schneider Electric
Delivered between Tue, 17.6. and Sat, 21.6.
5 items in stock at supplier

Product details

Range: TeSys D
Series: LC1D
Number of poles: 4
Coil voltage: 24 Vac
Nominal contact current: 18 A
Nominal contact voltage: 690 Vac
Contact configuration: 2 NO/2 NC contacts
Number of auxiliary contacts: 2
Connection type: Screw fixing
Length: 105 mm
Width: 45 mm
Operating temperature max: +60°C

UL and CSA certified. Four pole contactors, AC controlled. Utilization category AC1. Auxiliary contact configuration includes one NO and one NC. The width of LC1D contactors is 45 mm. Closing time of the LC1D series is 12-22 ms, and opening time is 4-19 ms. These contactors must not be used with TeSys overload relays, connection units, or GV2 overload switches.

Key specifications

input voltage
24 V
Output voltage
24 V
Output current type
AC
Electric current output
32 A
Relay type
Power contactor
Item number
9727890

General information

Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
LC1D188B7
Release date
24.9.2018
External links
Manufacturer's site (de)

Relay properties

Relay type
Power contactor
input voltage
24 V
Output voltage
24 V
Electric current output
32 A
Output current type
AC
Manufacturer Type
LC1D188B7

Smart home features

Smart Home
Not compatible

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Length
99 mm
Width
45 mm
Height
91 mm
Weight
425 g
