Schneider Electric ABL8PRP24100

Schneider Electric Protection Module ABL8PRP24100

Manufacturer: Schneider Electric
Designation: Protection Module
Type: ABL8PRP24100
Electrical connection type: Screw connection
With removable terminals: yes
1-phase undercurrent possible: no
3-phase undercurrent possible: no
1-phase overcurrent possible: no
3-phase overcurrent possible: no
1-phase window possible: no
3-phase window possible: no
Includes DC undercurrent function: yes
Includes DC overcurrent function: yes
DC window function: no
Rated control supply voltage Us at AC 50 Hz: 19..32 V
Rated control supply voltage Us at AC 60 Hz: 19..32 V
Rated control supply voltage Us at DC: 24 V
Voltage type for operation: AC/DC
Current measuring range: 10..40 A
Min. adjustable response delay time: 0 s
Max. permissible response delay time: 0 s
Min. adjustable fallback delay time: 0 s
Max. permissible fallback delay time: 0 s
Number of contacts as normally open: 4
External current transformer: no
Width: 71 mm
Height: 110 mm
Depth: 103 mm

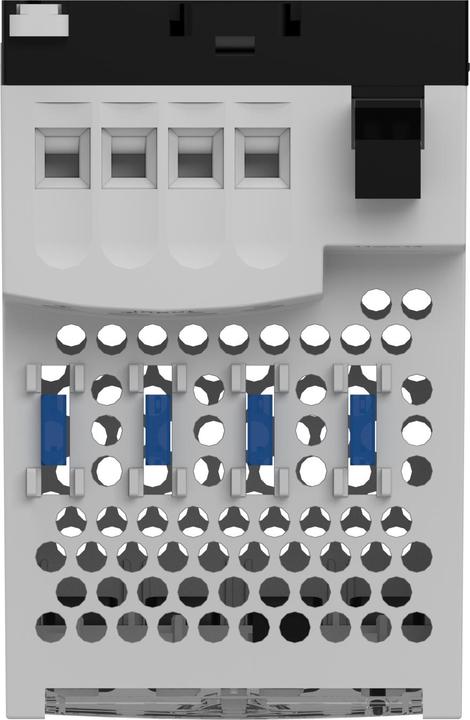

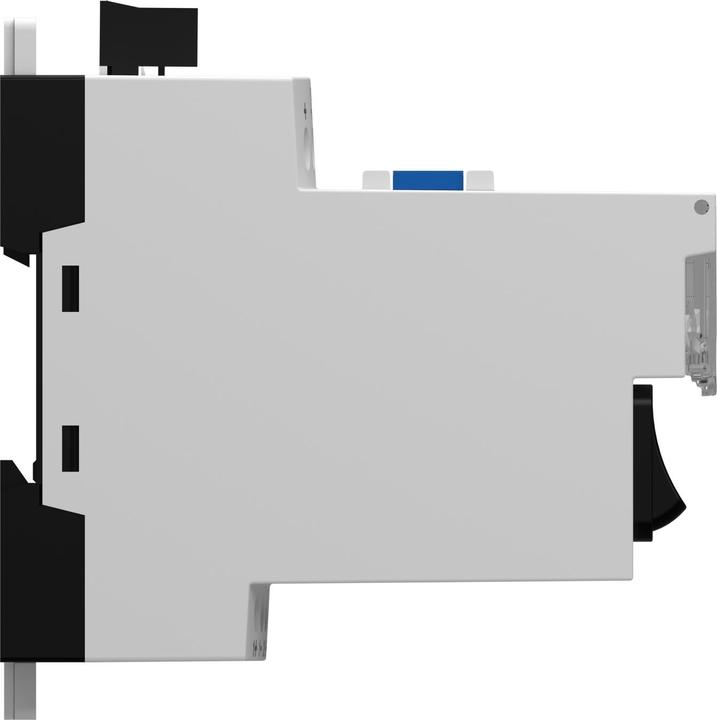

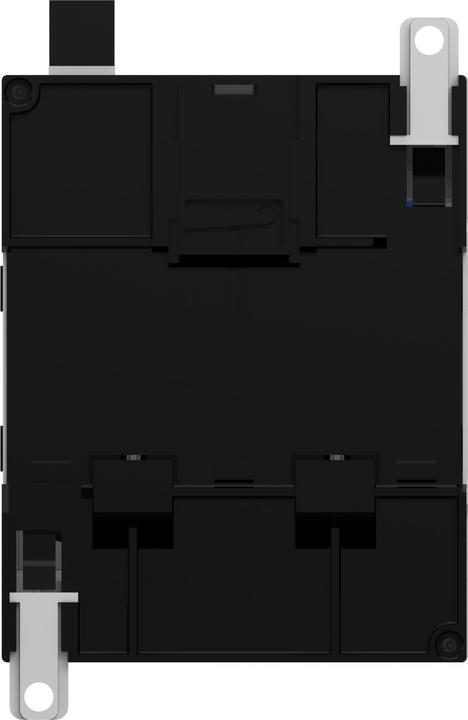

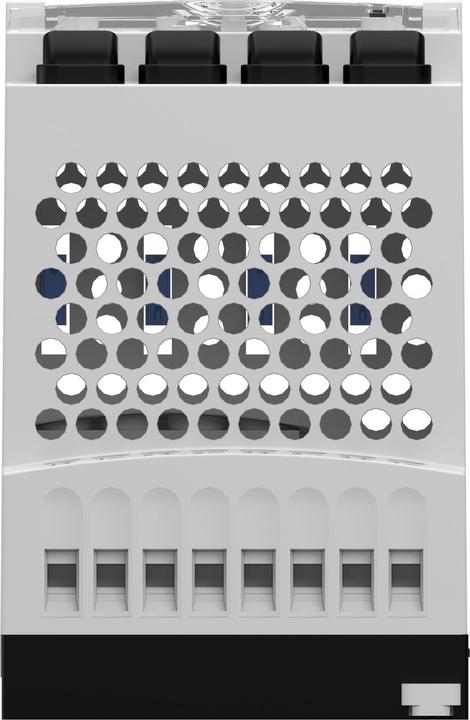

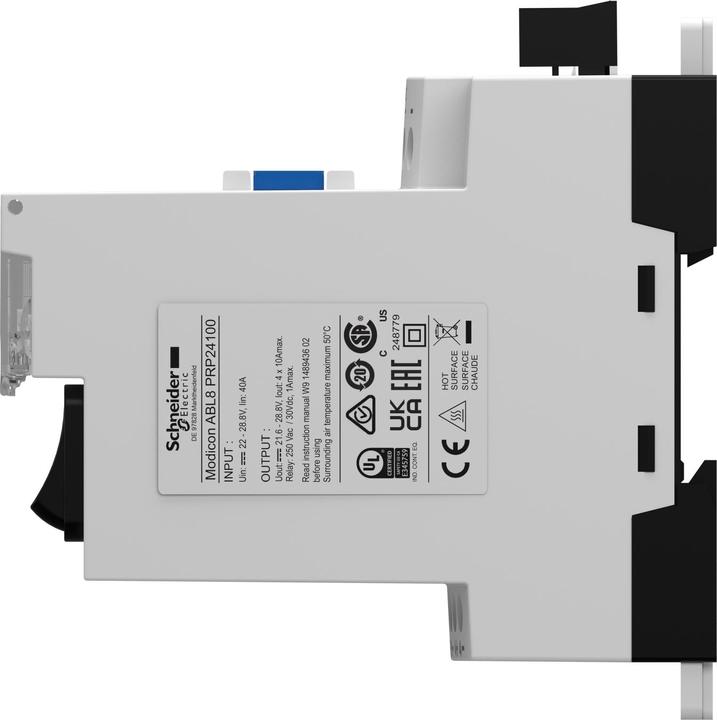

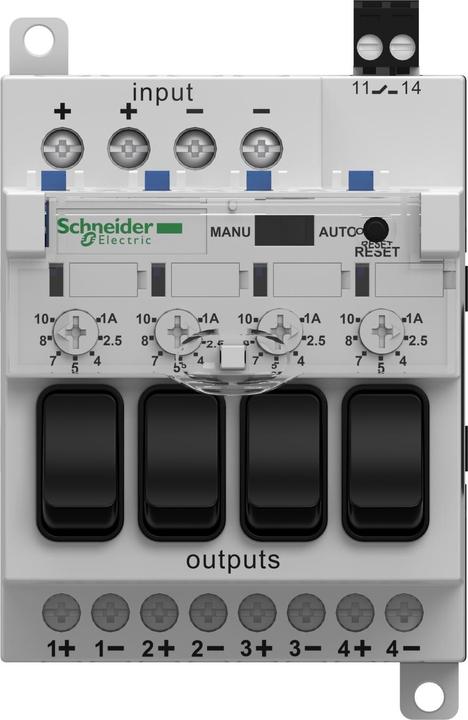

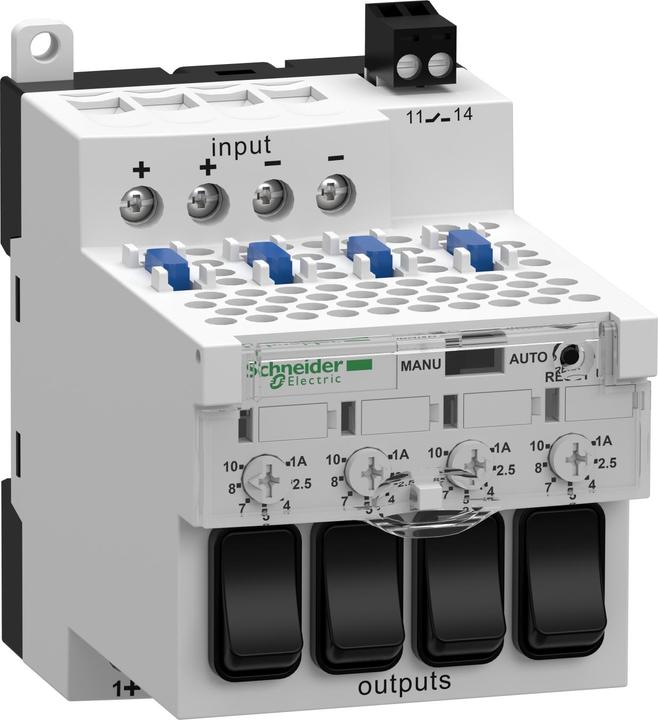

This functional module for the PHASEO ABL8 power supplies allows for up to 4 supply branches to be equipped with an electronic fuse. The current for each branch can be set in 7 steps between 1 A and 10 A. In the event of a short circuit, the behavior can be set between a manual or automatic reset. Additionally, a two-pole switch is available for each branch to interrupt the circuit. This allows for galvanic isolation before working on a circuit. LED indicators provide information about the status of each branch. A diagnostic relay indicates a shutdown.
