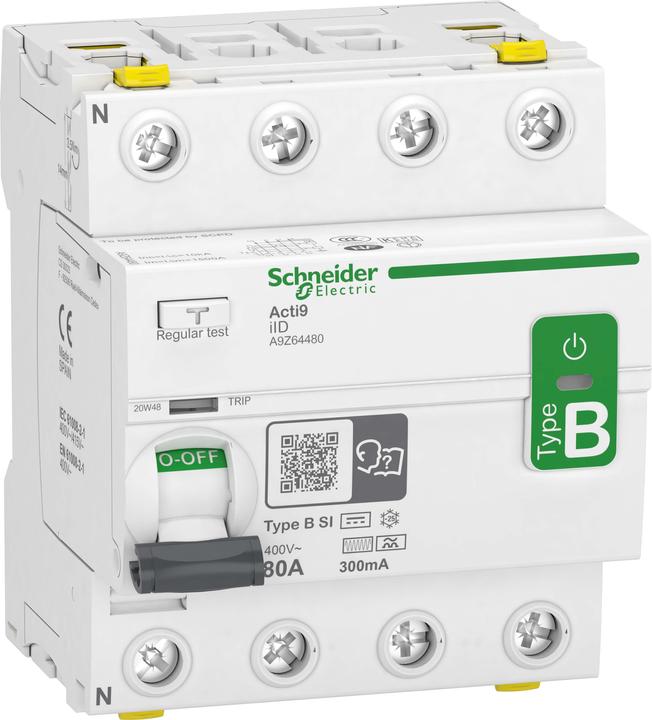

Schneider Electric A9Z64480 IID 4P 80A 300MA TYPE B-SI Residual Current Device All Current Sensitive

Ratings
Delivered between Sat, 26.7. and Sat, 16.8.
free shipping

Product details

The A9Z64480 IID 4P 80A 300MA Type B-SI RCD from Schneider Electric is a highly advanced residual current device specifically designed for use in electrical installations. With a rated current of 80A and a rated residual current of 300mA, this device provides a reliable solution for protection against electrical faults. It is all-current sensitive and suitable for both single-phase and three-phase supply networks, particularly in applications utilizing frequency converters or inverters. The integrated SI technology enhances disturbance resistance, increasing the safety and reliability of the device. The RCD is designed for mounting on a DIN rail, ensuring easy installation and maintenance. With features such as the mechanical fault indication (VisiTrip) and the safe contact indication (VisiSafe), it guarantees user-friendly handling and a clear display of operational status.

  • All-current sensitive RCD for enhanced safety in electrical installations
  • Mechanical fault indication (VisiTrip) to display tripping events
  • Safe contact indication (VisiSafe) for voltage-free status on the outgoing side
  • Double connection terminals for dual-side connection of cables or busbars
  • Expandable with optional auxiliary modules such as undervoltage and surge protection devices.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
44 mm
Width
4 mm
mounting style
Top-hat rail
number of poles
4
Item number
31991095

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
A9Z64480
Release date
24.10.2022

Colour

Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
B
Rated current
80 A
Rated voltage
400 V
voltage type
AC/DC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
0.30 A
Protection type (IP code)
IP20

Origin

Country of origin
Spain

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
44 mm
Width
4 mm
