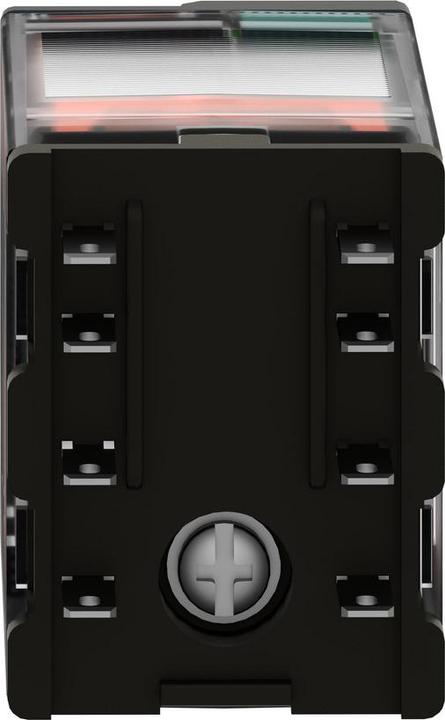

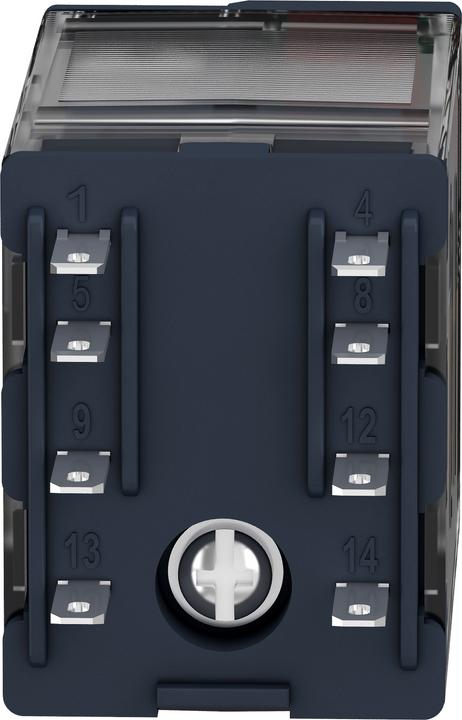

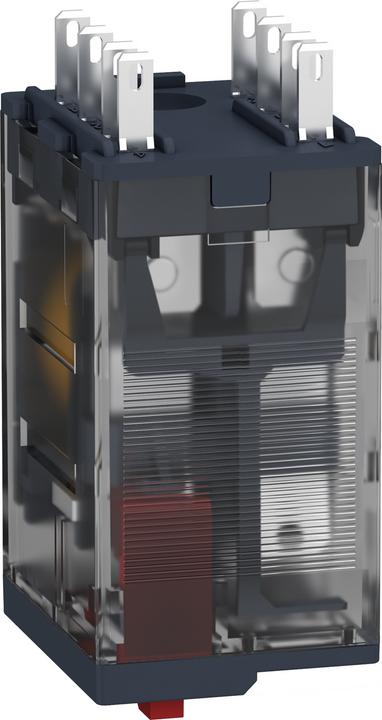

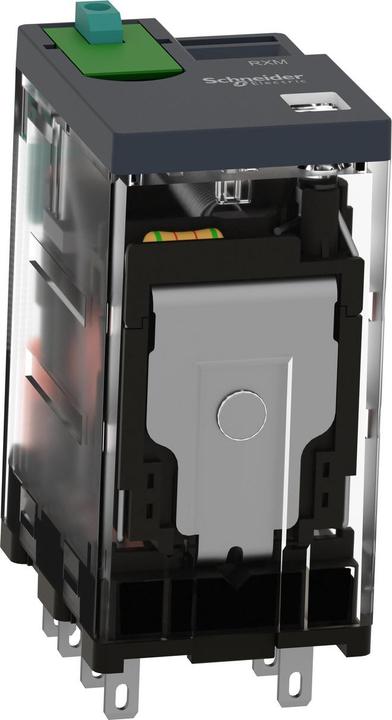

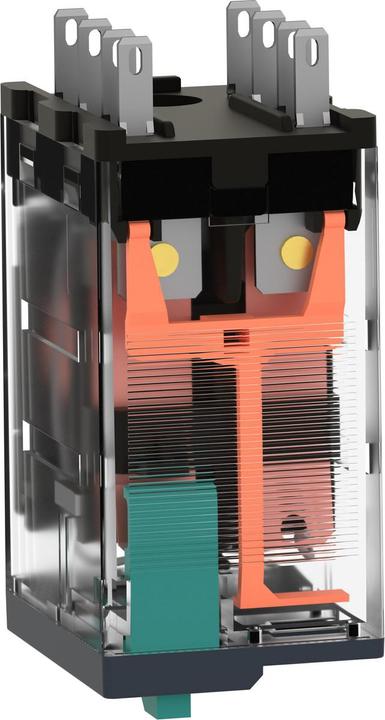

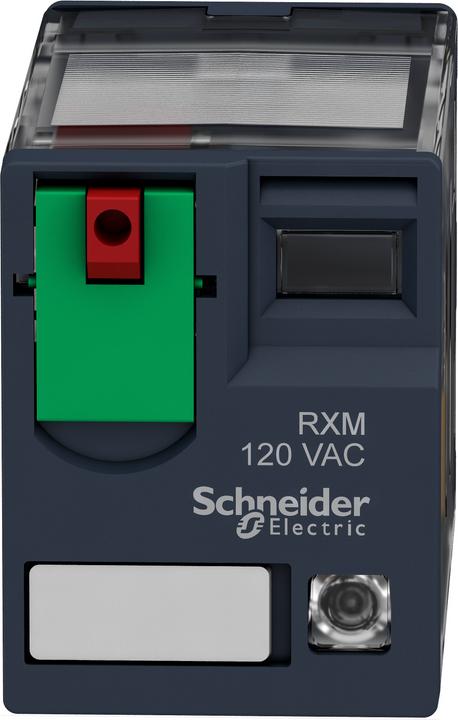

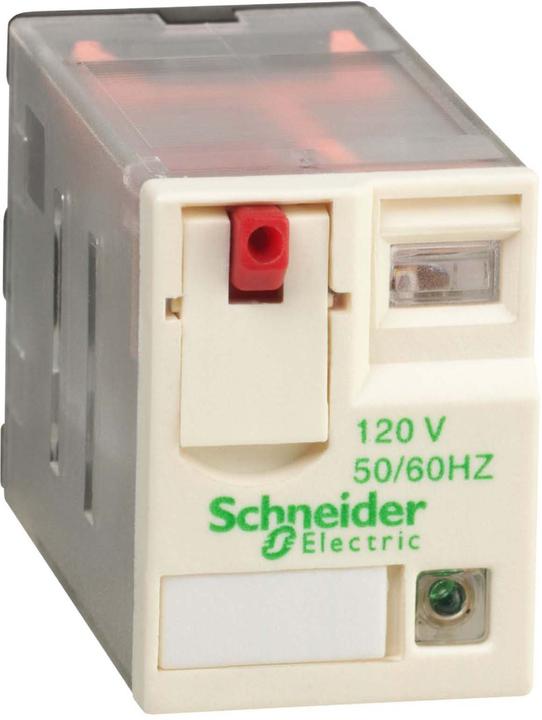

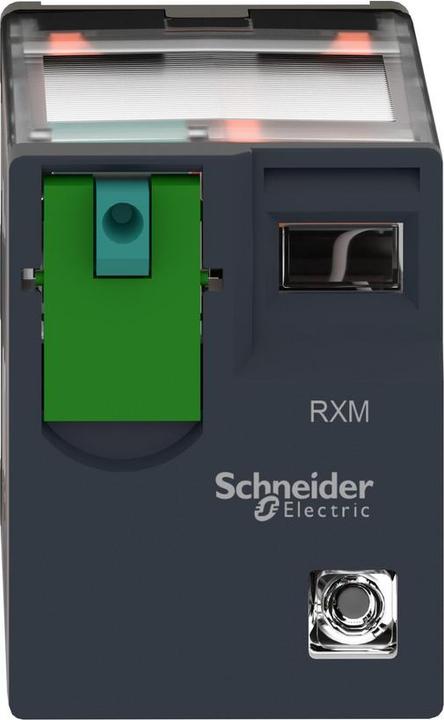

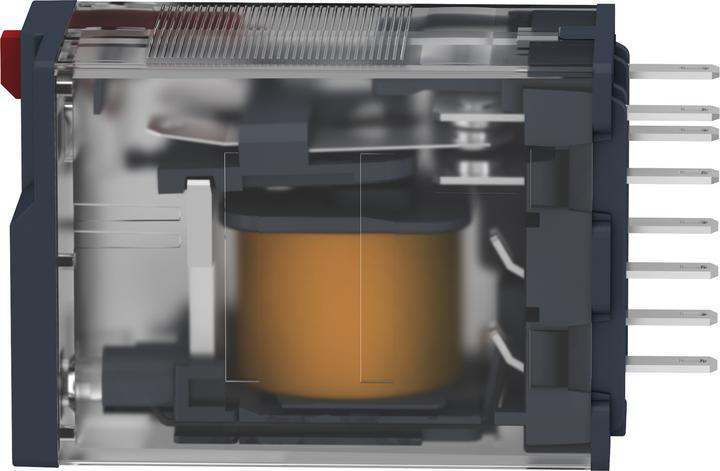

Schneider Electric 8 pin relay 120 Vac coil DPDT,12 A w/led

Minimum order 2
Ratings
BrandMore from Schneider Electric
Delivered between Mon, 29.12. and Fri, 2.1.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Coil voltage: 120V AC
Contact arrangement: 2-pole changeover contact
Switching current: 12 A
Connection type: Pluggable
Coil resistance: 3.63 kΩ
Switching voltage AC max: 250V
Length: 21mm
Depth: 47.7mm
Height: 27mm
Dimensions: 21 x 47.7 x 27mm
Operating temperature min: -40°C

RXM series miniature relays with LED. Schneider Electric's compact Zelio RXM miniature relays with LED can be used to increase the functions in electrical enclosures. They are particularly useful for industrial applications, machinery, construction equipment, and heating, ventilation, and air conditioning. This series of pluggable mini-relays on base, type RXZE2, is easy to use with no adjustment required for standard applications. It allows easy integration into power devices and can be adapted for all voltages. A test button and mechanical indication of relay status are included. The base for DIN rail mounting or with screws must be ordered separately.

Key specifications

Output current type
AC/DC
Relay type
Step switch
Electric current output
10 A
Output voltage
120 V
input voltage
120 V
Number of poles
2x
Item number
9905941

General information

Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
RXM2AB2F7
Release date
16.10.2018
Minimum order
2

Relay properties

Relay type
Step switch
input voltage
120 V
Output voltage
120 V
Electric current output
10 A
Output current type
AC/DC
Resistor
3630 Ω
Switching function
Changer
Number of poles
2x
Manufacturer Type
RXM2AB2F7

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Length
50 mm
Width
21 mm
Height
27 mm
Weight
37 g
