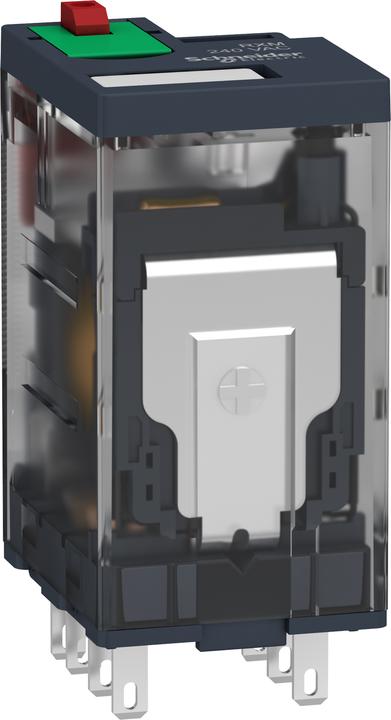

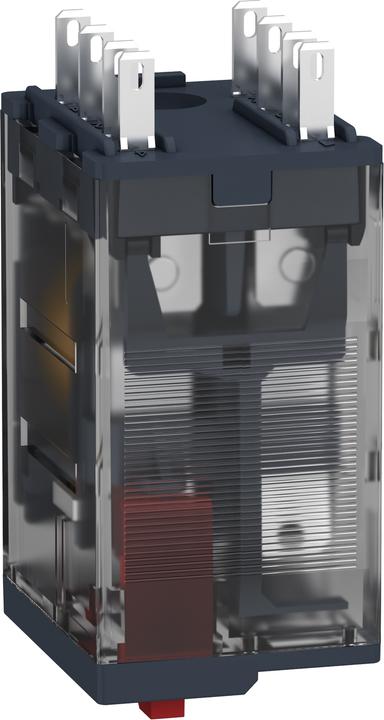

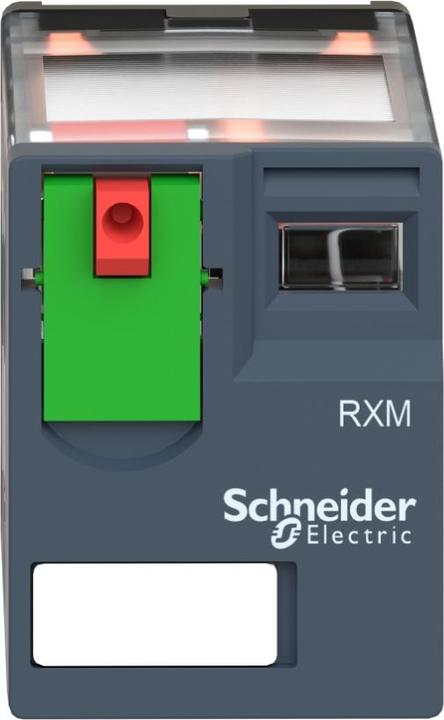

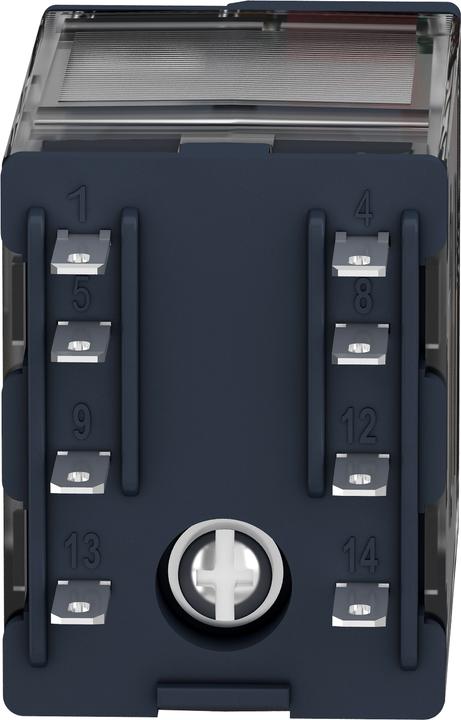

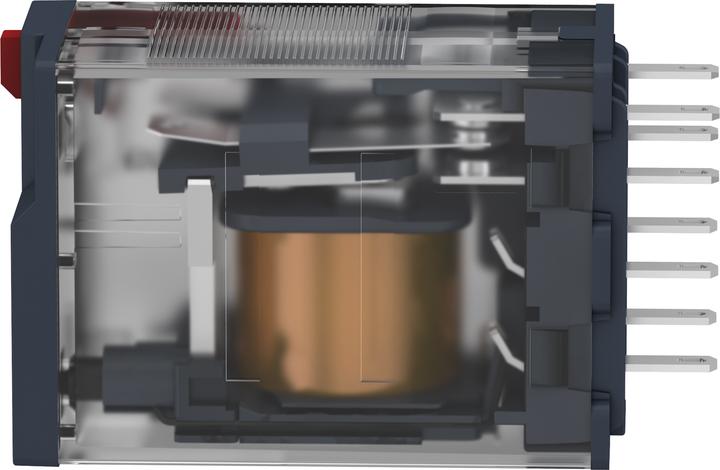

Schneider Electric 14 pin plug in relay 230Vac coil 6A 4PDT

Save CHF2.–
Ratings
Delivered between Sat, 25.4. and Fri, 1.5.
9 items ordered
Free shipping starting at 50.–

Product details

Coil voltage: 230V AC
Contact arrangement: 4 pole changeover
Mounting type: Plug-in
Connection type: Pluggable
Coil resistance: 15 kΩ
Switching voltage AC max: 250V
Length: 21mm
Depth: 47.7mm
Height: 27mm
Dimensions: 21 x 47.7 x 27mm
Coil power: 1.2W

RXM series mini relays without LED. Schneider Electric's compact Zelio RXM mini relays can be used to increase the functions in electrical enclosures. They are particularly useful for industrial applications, machinery, construction equipment, and heating, ventilation, and air conditioning systems. This series of pluggable mini-relays on base, type RXZE2, is easy to use with no adjustment required for standard applications. It allows for easy integration into power devices and can be adapted for all voltages. A test button and mechanical indication of relay status are included. The base for DIN rail mounting or with screws must be ordered separately.

Key specifications

Relay type
Installation relay
input voltage
230 V
Output voltage
230 V
Electric current output
6 A
Output current type
AC/DC

General information

Item number
9954030
Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
RXM4AB1P7
Release date
22.10.2018
External links
Manufacturer's site (de)

Relay properties

Relay type
Installation relay
input voltage
230 V
Output voltage
230 V
Electric current output
6 A
Output current type
AC/DC
Resistor
15000 Ω
Switching function
Normally open, Opener
Number of closers
4x
Max. Switching capacity
1.50 kW

Smart home features

Smart home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.54

Product dimensions

Length
50 mm
Width
21 mm
Height
27 mm
Weight
37 g
