Schell Urinal control RETROFIT LC 100-240 V, 50-60 Hz

Ratings
BrandMore from Schell
Delivered between Sat, 6.9. and Sat, 18.10.
free shipping

Product details

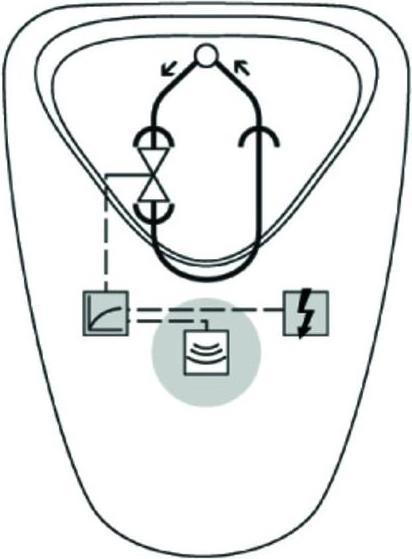

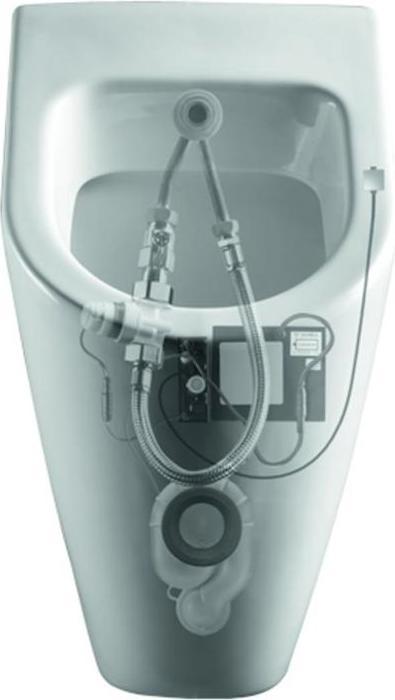

The Urinal Control RETROFIT LC is an innovative solution for the automatic control of urinals, distinguished by its vandalism-protected installation behind the sanitary ceramics. It is universally applicable and offers precise user detection through a corrosion-resistant sensor integrated into the system siphon. This control ensures effective odor trap monitoring, even at low water levels, and provides an automatic flush stop in the event of clogged drainage lines. Control is achieved via an externally adjustable reed contact, allowing for flexible adjustments. With three service programs and a diagnostic program, the Urinal Control RETROFIT LC is both user-friendly and easy to maintain. Installation is straightforward with a Plug+Play connector that has an IP 54 protection rating and includes all necessary components such as the E-module, the urinal siphon with LC sensor, and a solenoid valve in the plastic water line.

  • Vandalism-protected installation behind the sanitary ceramics
  • Corrosion-resistant sensor for precise user detection
  • Automatic flush stop in case of clogged drainage lines
  • Three service programs and one diagnostic program
  • Easy installation with Plug+Play connector IP 54.

Key specifications

Item number
24204227

General information

Manufacturer
Schell
Category
RC controllers + receivers
Manufacturer no.
012860099
Release date
20.2.2023

Receiver Features

Frequency
0 GHz
Operating voltage
240 V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
E-modulus, flexible tube, Plug+Play connector IP 54, Pressure seal adhesive strip, Solenoid valve in plastic water line, Special inlet fitting and flush pipe connector, Urinal trap with LC sensor

30-day right of return
24 Months Warranty (Bring-in)
