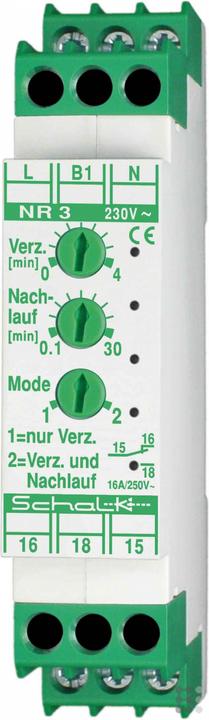

Schalk Overtravel relay

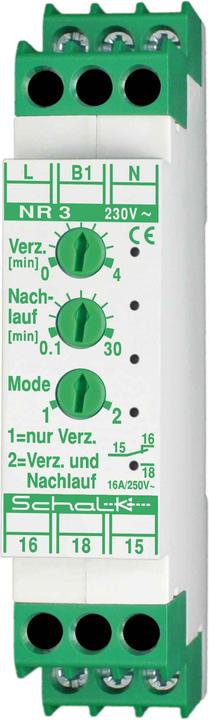

Schalk Delay Relay with NR 3

Manufacturer: Schalk
Description: Delay relay with switch-on delay
Type: NR 3
Electrical connection type: Screw connection
Delayed response function: yes
Delayed fallback function: yes
Remote control possible: yes
Rated control supply voltage Us at AC 50 Hz: 207..253 V
Rated control supply voltage Us at AC 60 Hz: 207..253 V
Voltage type for activation: AC
Rated current: 16 A
Time range: 0.3..1800 s
Number of outputs, non-delayed, changeover: 1
Number of outputs, delayed, changeover: 1
Outputs, switchable delayed/non-delayed: yes
Suitable for DIN rail mounting: yes
Width: 18 mm
Height: 58 mm
Depth: 55 mm

The NR 3 delay relay is an electronic timer switch with relay output for the delayed switching on and off of secondary consumers (e.g., for fan control in bathrooms/toilets, etc.). If needed, the relay can also be used as a pure switch-on delay without a follow-up time. With its switchable operating modes and adjustable run times over a wide range, the NR 3 relay can be used very flexibly. Dimensions: 18x55 mm, 230 V AC - 1 changeover (potential-free) 16 A. EAN: 4046929801096.
