Schäfer IT-Systems SHEPHERD B70820103322

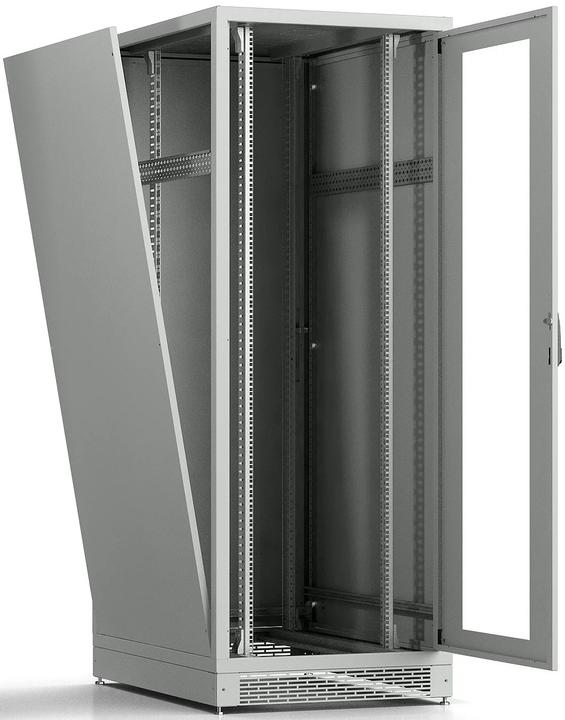

This PX server enclosure is made of powder-coated sheet steel with a galvanized interior. It is the right choice for the standard-compliant installation of network technology in accordance with IEC 297-1/2. Servers are the centerpiece of IT and must be permanently accessible; failures must be avoided. The robust sheet steel enclosure helps ensure that components such as processors and hard drives are securely housed. It is designed for installations in the standard size of 19 inches.

We offer the server enclosure in two sizes with a width of 600 or 800 mm. The scope of delivery includes matching side panels, a passively ventilated front and rear door, a roof with pre-lasers for up to six fans, and a base with cable entries. The package also includes four leveling feet for level installation. The enclosure fulfills protection class IP20 and is therefore resistant to solid foreign bodies.

The model has a high-quality appearance with its powder-coated surface and galvanized interior. The high manufacturing quality contributes to the longevity of the product. The PX server enclosure is available in light grey.

Further details:

• Sturdy server enclosure for installations in accordance with IEC 297-1/2 (19")
• Static load capacity: 7,500 NR
• Frame spacing at the front: 115 mm
• Protection class: IP20
• Base frame with 25 mm grid perforation at the side
• Front door and rear door passively ventilated, internal, with 1-point locking (sash lock), swiveling lever, and EK3332 lock
• Side panels, screwed, internal
• Roof with cable entries at the rear and sides, pre-lasered for up to 6 fans
• Floor with cable entries, 4 leveling feet M10 x 60 mm
• 4 perforated brackets (482.6 mm/19") with square holes at the front to accommodate cage nuts in accordance with IEC 297 d EIA
• Central earthing bolt
• Material: Sheet steel
• Surface: Powder-coated (outside), galvanized (inside)
• Colour: Light grey (RAL 7035)
• Dimensions: W 600/800 x D 1000 x H 2000 mm.
