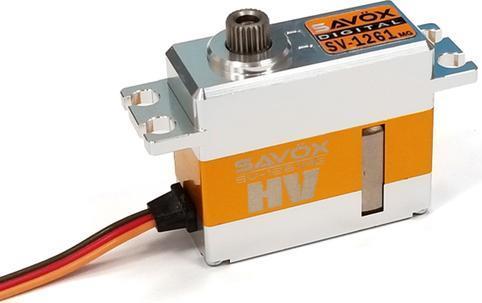

Savöx Servo SV-1261MG Digital HV

HV stands for High Voltage. Savöx servos marked as such can operate at voltages of up to 8.4 V. Using a 2s LiPo battery is completely hassle-free. All HV servos can, of course, also be operated at a lower voltage starting from 4.8 V, but less power will be available in that case.

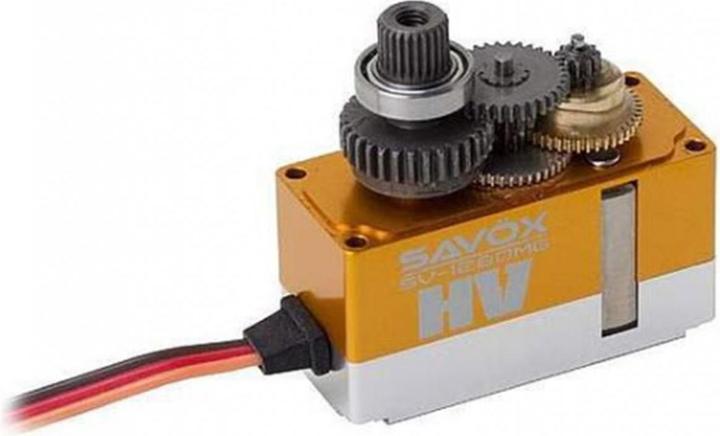

With the SV-1261MG, Savox introduces an even more powerful variant of the long-proven SV-1260MG. The SV-1261MG delivers an impressive 20 kg of torque at 7.4 V, making it more suitable than ever for all applications that require strength, precision, speed, and a play-free gearbox. The speed of the full metal servo with a full metal gear is 0.095 seconds per 60 degrees at 7.4 V. Thanks to the standard-sized 25-tooth output, all common servo arms in various sizes can be used.

In the 15 mm midi servo class, the SV-1261MG is a superlative servo that effortlessly replaces standard-sized servos while being significantly smaller. This is made possible by the powerful bell motor, which is typically only found in 20 mm class servos. The weight, including the cable, is exactly 40 grams. The servo features a soft start, meaning it slowly moves to the commanded position when powered on, thereby protecting the linkage.
