Satel Gprs Int-Gsm Lte Communication Module

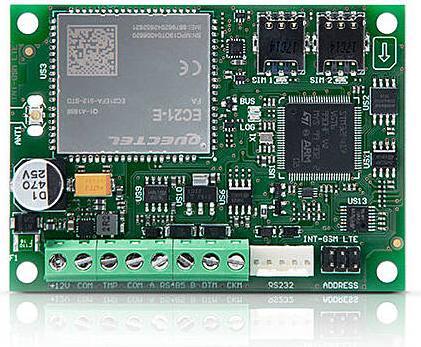

NT-GSM LTE is an LTE communication module that allows INTEGRA and INTEGRA Plus series of alarm control panels to communicate via 2G, 3G, or 4G cellular networks. The device operates on the control panel’s keypad bus and supports two SIM cards. All cellular data transfers are encrypted in the AES 192 standard.

INT-GSM LTE reports events to two monitoring stations (e.g., security agencies) via the cellular network. It uses cellular data transfer and SMS messages, with the possibility of setting the priority for each transmission path.

Event notifications are created automatically based on the control panel event memory. The module sends information via SMS messages or CLIP service (up to 16 numbers) and, in cooperation with the INTEGRA Plus control panel, also via email (up to 16 addresses). After installing the INTEGRA CONTROL app on a mobile device, PUSH notifications are available.

INT-GSM LTE's cooperation with INTEGRA and INTEGRA Plus control panels opens access to remote system control. A significant advantage of the INT-GSM LTE device is its ability to work with the ETHM-1 Plus Ethernet module (RS-485 port connection). This combination allows for the realization of Dual Path Reporting, in accordance with EN 50136, and for determining the priority of event monitoring tracks (Ethernet, cellular data, and SMS). By default, the cellular network serves as a backup communication channel for Ethernet.

Communication via the cellular network enables a wireless connection between the control panel and a computer with the installed DLOADX and GUARDX programs, allowing for system configuration even from a remote location. The connection between the module and PC can be established via the SATEL connection setup service.

Module firmware updates can be made via the RS-232 port or remotely using the UpServ software (data transfer via the cellular network).
