The Sapphire Nitro+ Radeon RX 580 graphics card, featuring future-proof Polaris architecture, is ideal for gaming in 1080p and higher, from the latest eSports games and MOBAs to popular, graphic-intensive AAA titles. Thanks to the advanced FinFET 14 nm manufacturing process, the new RX 500 series achieves higher clock rates than previous generations.
With DirectX 12 and Vulkan, the Polaris architecture guarantees maximum performance for today's and tomorrow's games through asynchronous shaders and an improved geometry engine. These next-generation APIs enable PC games to run faster and look better than ever.
The Radeon RX 580 graphics card, equipped with a brand new display engine, is ready for the new generation of HDR displays, HDR content, and future gaming. With a broader color palette and stronger contrasts displayed on HDR screens, HDR enhances human vision.

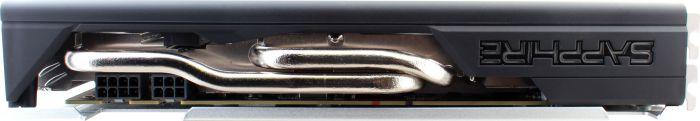

The Dual-X cooler of the new Sapphire Nitro+ RX 500 series features a completely new design. The surface area of the cooling fins has been doubled, and the combination of two 8 mm and two 6 mm copper heat pipes is particularly efficient. As a result, noise levels and temperatures are lower than in the previous generation.
Sapphire sets new standards for its Nitro+ models with the Fan Check System, allowing users to check the cooler status using Sapphire TriXX 3.0 software and contact customer service if issues arise.
For specific fan problems, Sapphire's Quick Connect system provides a quick, easy solution. If there's a fan issue, users do not need to send in the entire card; instead, Sapphire's customer service or retailer will provide a replacement fan. Please contact the dealer from whom you purchased the product for fan replacement. Sapphire's distributor will arrange the best replacement fan solution for you.
Length | 26 cm |
Number of shaders | 2304 x |
Graphics card model | Radeon RX 580 |
Video memory clock | 0 GHz |
Max. connected monitors | 5 x |
Max. Video resolution | 4096 x 2160 pixels |
Power consumption | 225 W |
Item number | 6327998 |
Manufacturer | Sapphire |
Category | Graphics card |
Manufacturer no. | 11265-01-20G |
Release date | 22.5.2017 |
External links |
Max. connected monitors | 5 x |
PCI Express version | PCIe 3.0 |
Max. Video resolution | 4096 x 2160 pixels |
Expansion card form factor | 2.2 Slots |
LED colour | RGB |
Graphics chip (GPU) | AMD Radeon |
Graphics card model | Radeon RX 580 |
Clock frequency | 1257 MHz |
Boost frequency | 1410 MHz |
Number of shaders | 2304 x |
Video memory type | GDDR5 |
Storage capacity | 8 GB |
Video memory clock | 0 GHz |
Memory Interface | 256 bits |
Memory Bandwidth | 256 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 2 x |
DirectX version | 12 |
OpenGL version | 4.50 |
Multi-GPU technology | AMD CrossfireX |
Video connections | DisplayPort (2x), DVI-D (Dual Link) (1x), HDMI (2x) |
HDMI version | 2.0 |
DisplayPort version | 1.4 |
Power consumption | 225 W |
Min. recommended system performance | 500 W |
Power connectors | 6-pin PCI-E, 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Length | 26 cm |
Width | 4.30 cm |
Height | 13.50 cm |
Length | 31.80 cm |
Width | 21.30 cm |
Height | 6.70 cm |
Weight | 1.27 kg |
How often does a product of this brand in the «Graphics card» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Graphics card» category returned?
Source: Digitec GalaxusDie Sapphire Nitro+ Radeon RX 580 8G arbeitet mit dem gleichen Chip wie die Powercolor auf Platz 7. Das Tempo bewegte sich im Test daher in etwas auf dem gleichen Niveau - die Nitro+ RX 580 ist aber leiser als die Red Devil. Mankos: Die Sapphire entwickelt mehr Wärme und sie benötigt beim Zocken mehr Energie (durchschnittlicher Stromverbrauch).
