RZB 950660.842.776.HB0 LINEDO High bay spotlight module 4000K ws DALI 7pol

17700 lm
Ratings
BrandMore from RZB
Delivered between Wed, 29.10. and Wed, 12.11.
free shipping

Product details

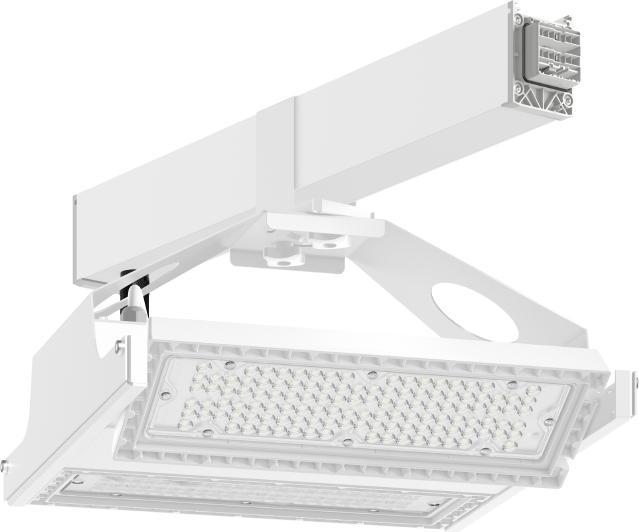

Quick-install complete module including Light Case series hall floodlight with 2 swivel LED modules. System profile made of powder-coated aluminum extrusion. Floodlight housing made of powder-coated aluminum die-cast and steel sheet. Cover made of impact-resistant polycarbonate with an integrated four-row lens system. LED modules are ± 30° adjustable for optimal illumination. Simple and tool-free installation of system profiles using separate accessories for cable or chain suspension. 7-pin Linedo connector (5 x 2.5 mm² / 2 x 1.5 mm²). Easy phase setting selection through a patented external system. Power supply module, connection, and mounting accessories must be ordered separately. The fixture can also be equipped with sensors such as motion detectors or light sensors for daylight control upon request. Fixture with limited surface temperature according to DIN EN 60598-2-24 for use in environments where non-conductive dust accumulation on the fixture is expected.

Key specifications

Application range
Indoor
Scope of illuminant
incl. fixed light bulb
Dimmability
Dimmable
Width
40 cm
Height
28 cm
Material
Die-cast aluminium and powder-coated sheet steel
Item number
31364307

General information

Manufacturer
RZB
Category
Wall lamps + Ceiling lamps
Manufacturer no.
950660.842.776.HB0
Release date
24.9.2022

Colour

Colour
White
Exact colour description
White

Material

Material group
Metal
Material
Die-cast aluminium and powder-coated sheet steel

Application range

Application range
Indoor

Lamp properties

Dimmability
Dimmable

Bulb properties

Scope of illuminant
incl. fixed light bulb
Bulb type
LED light
Housing
Matt
Luminous flux
17700 lm
Light colour
White
Colour temperature
4000 K
Colour rendering index
80
Shielding angle
57°
Lamp service life
50000 h
Number of lights
2 x
Max. power per lamp
117 W

Smart home features

Smart Home
Not compatible

Power supply

Voltage
240 V
Power supply
Electrical connection
input voltage
220 - 240 V
Power consumption
117 W

Safety

Protection type (IP code)
IP54
Protection class
Protection class I

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
Hallenstrahlermodul 950660.842.776.HB0

Product dimensions

Length
59.80 cm
Width
40 cm
Total height
28 cm
Height
28 cm
Weight
11.10 kg
