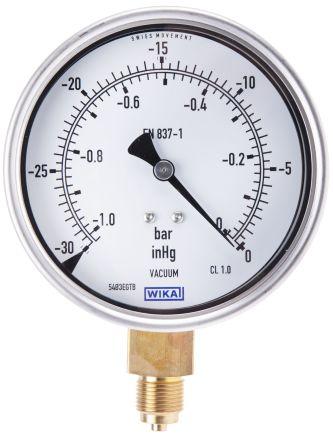

Rs Pro Vacuum gauge,0-30Hg

Pressure gauge type: Vacuum
Pressure max: 0 bar
Pressure min: -1 bar
Indicator outer diameter: 100 mm
Connection size: BSP G3/8
Operating temperature max: +60°C
Operating temperature min: -40°C
Housing material: Stainless steel

This double scale pressure and vacuum gauge features a 100 mm diameter. It is part of a series of universal gauges that are suitable for all gaseous and liquid media, ensuring they do not damage the pressure system or corrode copper alloy components. The bottom insertion port guarantees a perfect fit in your design. Each model is constructed from extremely durable stainless steel, making it ideal for various applications. All models are highly reliable and of excellent quality.

Features and benefits include:

• Tool glass window
• Integrated throttle screw
• Copper alloy element and movement
• Stainless steel body with G 3/8 BSPM (32 mm faces)
• Lower inlet connection
• Ambient temperature range: -20 to +60°C
• Operating temperature (medium): +60°C
• Accuracy class 1.6 according to DIN 16005
• Calibrated versions available.
