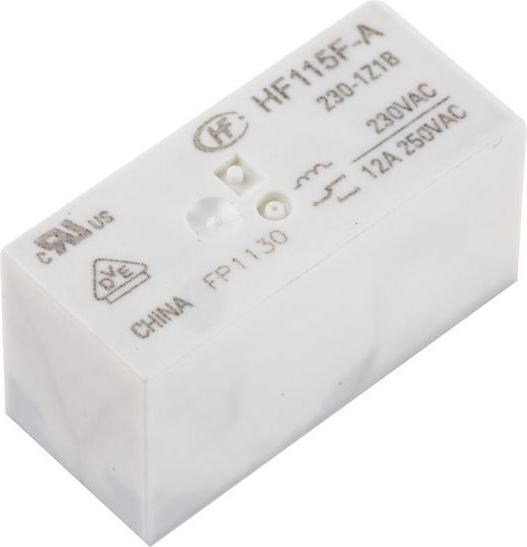

RS PRO Relay Miniature high power 12A SPDT 230V

Minimum order 3
Ratings
BrandMore from RS PRO
Delivered between Fri, 17.4. and Wed, 22.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Coil voltage: 230V AC
Contact arrangement: 1-pole change-over contact
Switching current: 12 A
Connection type: Push-through mounting
Coil resistance: 32.5 kΩ
Switching voltage AC max: 440V AC
Switching voltage DC max: 300V DC
Application type: Power
Length: 29mm
Depth: 12.7mm
Height: 15.7mm
Dimensions: 29 x 12.7 x 15.7mm
Number of poles: 1

IEC 60335-1, UL, VDE, CQC certified. Relay for high inrush currents. High inrush current: TV-5 80 A (at 125 V AC). Flat profile: 15.7 mm max height, 5 mm pin spacing. 5 kV dielectric strength (between coil and contacts). Surge voltage up to 10 kV (between coil and contacts). Wash-resistant. Creepage distance: 10 mm. Corresponds to VDE 0435/0631/0700.

Key specifications

Relay type
Power contactor
input voltage
230 V
Output voltage
230 V
Electric current output
12 A
Output current type
AC
Number of poles
1x

General information

Item number
9911409
Manufacturer
RS PRO
Category
Relays
Manufacturer no.
8004479
Release date
16.10.2018
Minimum order
3

Relay properties

Relay type
Power contactor
input voltage
230 V
Output voltage
230 V
Electric current output
12 A
Output current type
AC
Resistor
32500 Ω
Switching function
Changer
Number of poles
1x

Smart home features

Smart home
Not compatible

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
2.18 kg
Climate contribution
CHF 0.11

Product dimensions

Length
80 mm
Width
50 mm
Height
16 mm

Package dimensions

Length
11.10 cm
Width
8.90 cm
Height
1.90 cm
Weight
19 g
