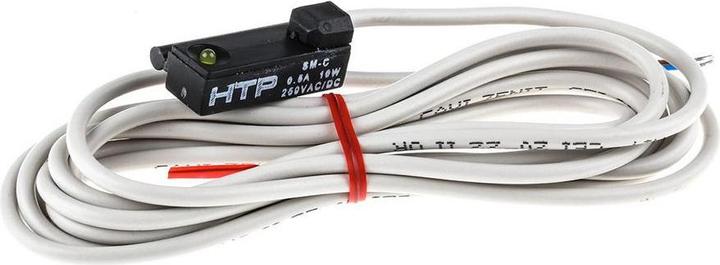

RS PRO Reed switch with LED for cylinder
Delivered between Tue, 19.5. and Wed, 20.5.
Only 1 piece in stock at third-party supplier
Only 1 piece in stock at third-party supplier
Supplied by
Distrelec CH
free shipping
Nominal voltage2
Product details
Manufacturer series: DSM
Type: Reed
Mounting type: Clamp
Operation: Normally open
Open lead length: 2.5 m
Suitable mounting tape required. Reed switch. Contact function: make contact. Rated voltage: 3-250 V AC/DC. Rated current: 0.5 A AC/DC. Rated power: 15 W inductive, 50 W resistive load. Protection class: IP65. Integrated LED signal lamp with 2.5 m 2-wire connection lead. Ambient temperature: -20 to +85 °C. Switch-on time: 1.2 ms. Switch-off time: 0.1 ms. Electrical life: 10 million switching cycles. Resistance: 0.1 Ω.
Width | 90 mm |
Item number | 10314365 |
Manufacturer | RS PRO |
Category | Buttons + Switches |
Manufacturer No. | 3043959 |
Release date | 15.1.2019 |
Nominal voltage | 250 V |
Nominal current | 0.50 A |
Max. Switching capacity | 15 W |
Protection type (IP code) | IP65 |
Country of origin | Italy |
Manufacturer commitment | SBTi |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Smart home | Not compatible |
Length | 175 mm |
Width | 90 mm |
Height | 20 mm |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
1 additional offer
