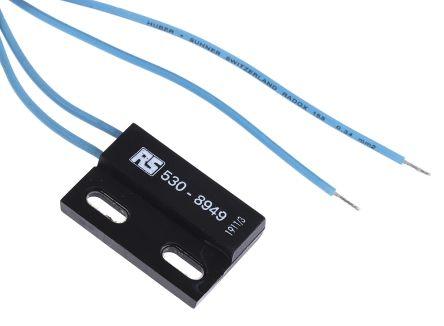

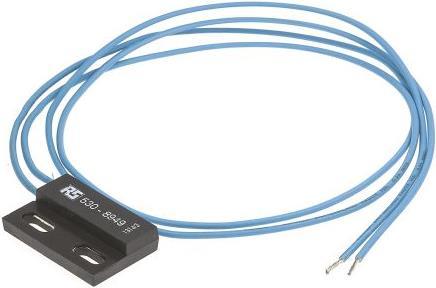

RS PRO Reed switch
Minimum order 2Delivered Tue, 23.9.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–
Product details
Switch shape: Flat
Switch type: Magnetic proximity switch
Contact number and position: SPST
Contact configuration: Normally open
Output type: 1 pole normally open
Connection type: Screw mounting
Current max: 500 mA
AC voltage max: 180 V
DC voltage max: 500 V
Contact position: Normally open
Contact resistance: 150 mΩ
Total length: 28.6 mm
Length: 28.6 mm
Dimensions: 28.5 x 19 x 6.25 mm
High temperature: Designed for high temperatures up to 150 °C. Dimensions: H x L x W: 19 x 26.6 x 6.35 mm. Screw mounting on solid surface. PTFE wire for use in extreme conditions. Applications: Door and window controls, position switches and limit switches, and level sensors for use with magnetic floats to sense water level.
Automation functions | Switch function |
Item number | 9729840 |
Manufacturer | RS PRO |
Category | Home automation |
Manufacturer no. | 5308949 |
Release date | 24.9.2018 |
Minimum order | 2 |
Automation type | Switch |
Automation functions | Switch function |
Manufacturer Type | Closer screw 1, RS PRO reed contact flat SPST |
mounting style | Screws |
Electric current output | 0.50 A |
Power supply | Electrical connection |
Country of origin | Germany |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 12.50 cm |
Width | 7 cm |
Height | 1.50 cm |
Weight | 8 g |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
1 additional offer
