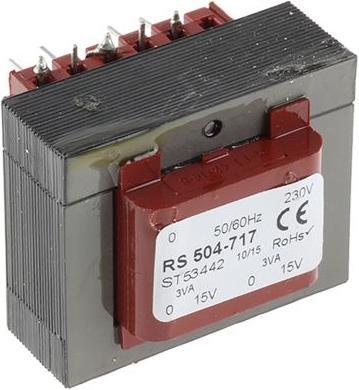

Rs Pro PCB mount transformer,2x0-15V 0.2A 6VA

Currently out of stock
Free shipping starting at 50.–

Product details

Secondary rated voltage = 15V ac
Nominal power = 6VA
Primary rated voltage = 230V ac
Number of outputs = 2
Length = 43mm
Width = 36mm
depth = 33mm
dimensions = 43 x 36 x 33mm
Weight = 180g
Mounting type = through hole mounting
Operating frequency min. = 50Hz
Operating frequency max. = 60Hz

Print transformers with fuse, flame retardant. Fuse in primary overload protection and short circuit protection Flame retardant materials according to UL94-V0 Fully encased windings Additional pins for safe PCB mounting Designed and tested according to EN 61558 (EN 60742) EN 60950.

Key specifications

input voltage
230 V
Output voltage
15 V
transformer type
PCB transformer
Power
6 W
Item number
9910682

General information

Manufacturer
Rs Pro
Category
Transformer
Manufacturer no.
504717
Release date
16.10.2018
External links

Transformers + Coils Features

transformer type
PCB transformer

Power supply

input voltage
230 V
Output voltage
15 V
Power
6 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
43 mm
Height
43 mm
