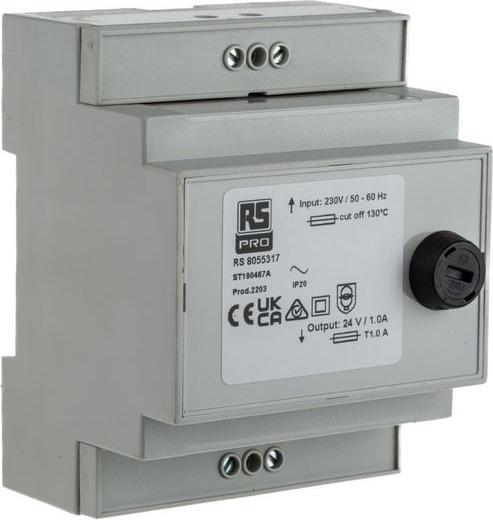

Rs Pro Modular DIN-rail Transformer 24Vac 24VA

Primary nominal voltage: 230V AC
Secondary rated voltage: 24V AC
Rated power: 24VA
Mounting type: DIN rail
Number of outputs: 1
Length: 86mm
Width: 71mm
Depth: 54mm
Dimensions: 71 x 54 x 86mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Maximum temperature: +130°C
Weight: 600g

RS isolation transformer M36 series. Encapsulated single-phase transformer according to IP20 with screw terminals. Mounting on 35 mm DIN rails (TS35). Protected against short-circuits and overload. Designed for continuous load with 100% electrical test and breakdown test. Temperature class E (120°)/ta 40 °C.
