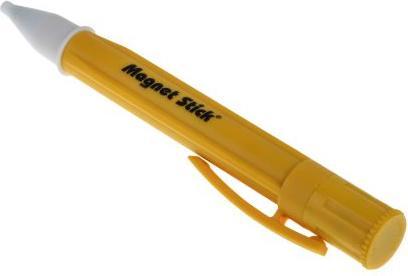

Rs Pro Magnetic stick field indicator

Display type: Magnetic field
Magnetic sensitivity: 0.3 MT
Battery type: AAA
Power supply: Battery
Safety category: CAT III 1000 V
Dimensions: 17 (diameter) x 152 mm
Weight: 40 g
Diameter: 17 mm
Length: 152 mm
Max voltage detection: 1000 V AC
Max operating temperature: +50 °C
Safety voltage: 1000 V

Batteries are included, and a user manual is provided. This device features a switch sensor with magnetic detection. For applications requiring higher sensitivity, we recommend order number 719-0876, which is based on a Hall effect sensor. Magnetic field indicator / magnetic switch tester. The tip of the magnetic stick lights up in the presence of a magnetic field. It responds to all types of magnetic fields, from alternating current to direct current and strong permanent magnets. A small test magnet is housed in the cap of the magnetic stick to verify proper function. Product application information: Testing of solenoid valves in pneumatic and hydraulic control devices. For testing relays with coils and electrically operated solenoid valves in all types of vehicles and machinery. Testing of solenoid valves during the maintenance of oil burners. The test lamp lights up immediately and without metal contact when a magnetic field, such as an activated coil in a solenoid valve, is present.
