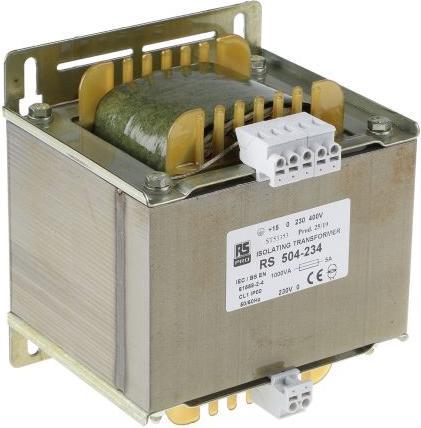

RS PRO Isolation transformer,1000VA 0-230V o/p

Primary rated voltage: 230 V AC, 245 V AC, 400 V AC, 415 V AC
Secondary rated voltage: 230 V AC
Rated power: 1 kVA
Mounting type: DIN rail
Number of outputs: 1
Length: 150 mm
Width: 175 mm
Depth: 155 mm
Dimensions: 150 x 175 x 155 mm
Minimum operating frequency: 50 Hz
Maximum operating frequency: 60 Hz
Maximum temperature: +35 °C
Weight: 14.6 kg

Switchgear primary 230/400 VAC with +15 VAC tap. High-quality safety and control isolation transformers for use in control circuits and general applications. Low loss noise lamination. Double standard primary winding 230 / 400 VAC with +15 V tap for input flexibility. Dual secondary windings with center tap. Grounding terminal included. Fully lacquer-impregnated for protection against moisture and rust. Fully encapsulated cage terminal with voltage markings. Detailed product data on a durable label. High efficiency, low regulation.
