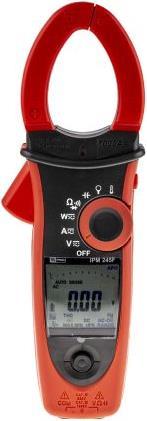

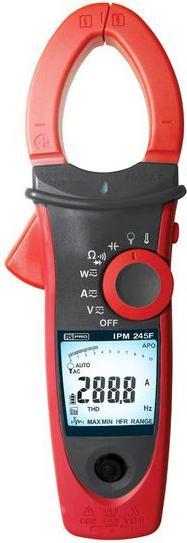

RS PRO IPM245F Power Clampmeter, 1000 A

AC current absolute max: 1 kA ac
DC current absolute max: 1 kA dc
AC voltage absolute max: 1000 V ac
DC voltage absolute max: 1000 V dc
Resistance measurement absolute max: 100 kΩ
Model number: IPM245F
AC current resolution: 0.01 A
DC current measurement resolution: 0.01 A
DC current accuracy max: ±1.5% + 5 digits
Clamp meter type: current, diode, resistance, voltage
Measuring accuracy AC current max: ±1.5% + 5 digits
Measuring accuracy AC voltage max: ±1% + 5 digits
DC voltage accuracy max: ±0.7% + 2 digits
Temperature measurement accuracy max: ±1% + 1 °C

IEC 61010-1: Cat. IV 600 V, Cat. III 1000 V. Current clamp, battery (built-in), carrying case, temperature probe and operating instructions. Current clamp RS Pro IPM245F for 1000 A ac/dc with high performance. Ideal for extending the AC current measuring range of ISO-TECH and RS PRO current clamps. Digital display up to 10,000 count values, active backlight, large display, VoltSense (non-contact voltage), analog bar graph, true RMS measurement in AC and AC+DC modes, flashlight illumination when clamped, automatic selection AC/DC, up to 1000 A ac via flexible current tester, automatic selection AC/DC, up to 1000 A, auto resistance/current continuity/diode selection, resistance up to 100 kΩ, continuity buzzer, frequency counter, power and power factor measurement, total harmonic distortion and harmonics 1 to 25, capacitance, °C/°F temperature function, inrush current, DCA automatic zeroing button, peak hold, MIN./MAX. HOLD, smart data HOLD, phase rotation indicator, low-pass filter, automatic shutdown.
