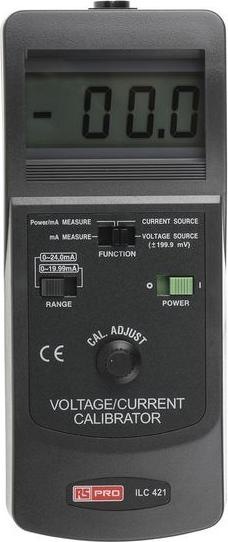

Rs Pro Handheld current/voltage calibrator

Ratings
Delivered Wed, 14.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

Absolute max. voltage = +199.9 mV dc
Absolute max. current measurement = 24 mA
Max. accuracy = ±0.25 % + 1 digit
Power supply = Battery
Battery type = 9 V, alkaline battery, rugged design, M1605/PP3
Dimensions = 78 x 38 x 185 mm
Weight = 265 g
Height = 185 mm
Length = 78 mm
Max. operating temperature = +50 °C
Max. source current = 24 mA
Min. operating temperature = 0 °C

Voltage and current calibrator in handheld format from RS Pro. Portable measuring device for calibrating process instruments and measuring process signals. The quality and accuracy of the calibrator are covered by four functions: current source, current measurement, power supply, and measurement of a two-wire control loop, as well as a DC voltage source in the mV range. Features and benefits: Portable measuring device for calibrating process instruments and measuring process signals, power supply and measurement of a two-wire control loop, adjustable current source from 0 mA to 24 mA, adjustable voltage source from -199.9 mV to +199.9 mV dc. The drive of the current calibrator can handle loads up to 500 Ω. LCD display, max. display count: 1999.

Key specifications

Multimeter type
Handheld multimeter
voltage type
DC/TRMS
measurement tolerance
1.25 ± %
Item number
10358088

General information

Manufacturer
Rs Pro
Category
Multimeter
Manufacturer no.
1238769
Release date
24.1.2019

Multimeter Features

Multimeter type
Handheld multimeter
Manufacturer Type
CC421-G

Metrology

voltage type
DC/TRMS
current type
DC
measurement tolerance
1.25 ± %

Origin

Country of origin
Taiwan

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
22.50 cm
Width
10.50 cm
Height
6.50 cm
Weight
0.03 kg

Package dimensions

Length
23 cm
Width
10.80 cm
Height
4.80 cm
Weight
396 g
