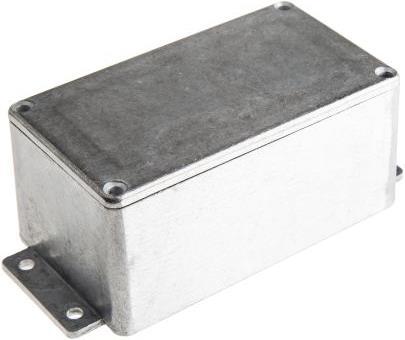

Rs Pro EMI/RFI flanged Al.. box,140x64x55mm

Housing material: Aluminum die-cast
External dimensions: 139.6 x 63.8 x 55 mm
External length: 139.6 mm
External width: 63.8 mm
External height: 55 mm
Color: Natural
Cover color: Uncoated
With flange: Yes
Shielded: Yes

EMI/RFI – Flanged, shielded aluminum die-cast housings. Shielded aluminum die-cast housings from RS Pro are made from a high-quality aluminum alloy with a natural finish and no external coating. The housings can withstand temperatures up to 250 °C without affecting the aluminum or the housing structure. Mounting flanges are integrated for easy installation within the housing. Various sizes and wall thicknesses are available.

Features and benefits:

• EMI/RF shielding
• Aluminum die-cast alloy ADC 12 (LM24 to BS1490)
• High-quality aluminum
• Cover is equipped with lips to ensure EMI/RFI shielding
• Shielding exceeds 40 dB at 10 MHz and 76 dB at 100 kHz
• Taper of 1.5° per side cover towards the bottom
• No adhesive seal included
• High temperature resistance
• Various sizes and wall thicknesses available

Mounting:
Housing with flange. The flange is located at the bottom of the housing and allows for easy wall mounting. The length specification of the external dimensions includes the flanges. Guides for PCB mounting.

Housing/cover design:
Untreated aluminum, smooth, no external coating. If painting is desired, use powder coating. No seal.

Cover attachment to the base:
The cover is fitted with a lip to ensure a tight fit against the base. Taper of 1.5° per side cover towards the bottom. Threaded holes for a good fit. Mounting holes are located outside the interior of the housing. Countersunk stainless steel screws M3.5 x 9 mm Supadrive secure the cover.

Temperature resistance:
Up to 250 °C - no impact on material or structure.
