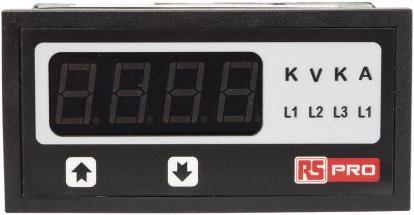

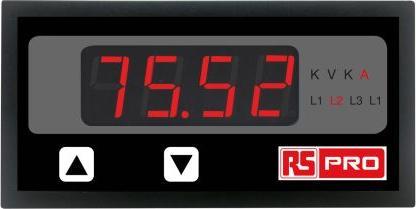

Rs Pro Dig Ammeter, 48x96, 3Ph, 40-300V ac/dc

Power Type: AC
Cutout Height: 43.5 mm
Cutout Width: 92 mm
Display Type: LED
Number of Digits: 4
Display: Numeric Only
Depth: 68 mm
Accuracy: ±0.5 % + 1 Digit
Min Temperature: 0 °C
Max Temperature: +50 °C
Device Type: Electronic

Digital current meter from RS Pro – 3-phase. RS Pro digital current meters are designed for use in industrial applications where precise adjustment of the display range is required on-site. The current meters measure important electrical parameters in 3-phase 4-wire, 3-phase 3-wire, and single-phase networks. RS Pro meters can be used in industrial automation and laboratories.

Features and Benefits:

• 4-digit ultra-bright LED display (up to 9999)
• Quick and easy installation (clip mounting only for 96x96 model)
• Measurement of true RMS value
• Field-programmable CT/PT ratios
• User-selectable CT secondary 1 A/5 A
• User-selectable PT secondary from 100 VLL to 500 VLL
• User-selectable 3-phase 3-wire/3-phase 4-wire/single-phase network
• Large auxiliary power supply that can accommodate any input between 40 V and 300 V AC/DC
• Storage of minimum and maximum values.
