Rs Pro Compact Multimeter Manual Ranging

Multimeter Type: Handheld
Absolute Max. DC Current: 10A DC
Absolute Max. Resistance Measurement: 2MΩ
True RMS: No
Max Frequency: 60Hz
Display Type: LCD
Model Number: RS12
DC Measurement Resolution: 1µA
Resistance Measurement Resolution: 100mΩ
Safety Voltage: 600 V, 1000 V

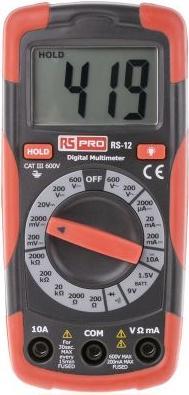

The RS12 multimeter from RS Pro is a handheld tool for measuring voltage, current, and resistance. It features a manual range selection, allowing you to choose the desired range via the scale on the front of the device. Additionally, it has a memory function. The RS12 is also rated for Category III at 600 V.

The RS12 is a compact, portable multimeter that is ideal for use in your workshop or on-site. It is battery-operated, making it mobile. Furthermore, it features a digital backlit LCD screen with 2,000 counting pulses. A robust, double-molded plastic housing provides ultimate protection in harsh environments.

When measuring your electronic circuit or battery, it is important to be able to read the values accurately. The RS12 not only offers excellent value for money but also reliable quality. It also comes with an impressive 3-year warranty.

What does it measure? Voltage (V), Current (mA), Resistance (Ω).
What’s included? RS12 multimeter, test leads, 9V battery, user manual.
Dimensions: 150 x 70 x 48 mm.
Calibrated Options: 123-1939 (Not calibrated), 123-2005 (UKAS), 123-2004 (RSCAL).
