RS PRO Black IP66 Extrude Alumin.146.6x41.6x129

Housing material: Aluminum
Dimensions (outside): 146.6 x 41.6 x 129 mm
Length (outside): 146.6 mm
Width (outside): 41.6 mm
Height (outdoor): 129 mm
IP protection class: IP66
Color: Black
Cover color: Black
Shielded: No

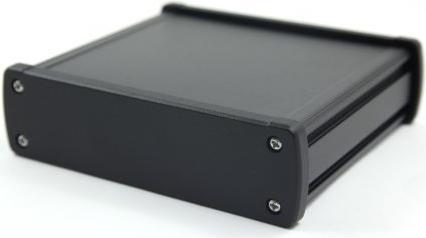

Extruded aluminum enclosures from RS Pro, IP66 rated. These versatile enclosures can be used for indoor and outdoor applications, such as desktop applications, junction/control boxes, or wall mounting. They feature an extruded aluminum enclosure available in either black or silver, with a black die-cast aluminum end panel. A 0.5 mm recess in the top is designed to accept a product label or silk-screened label. Available separately are a continuous rubber gasket for IP66-rated protection, a die-cast aluminum wall mounting kit, a PCB stop, and rubber feet.

Features and benefits:

• Extruded aluminum enclosure (alloy 6063), silver or black anodized
• Die-cast aluminum end panels (alloy ADC-12) with black powder coating
• 0.5 mm recess in top of enclosure
• IP66 protection (with rubber gasket)
• RoHS compliant
• Constructed to ISO 2768-m tolerances
• Rubber feet.
