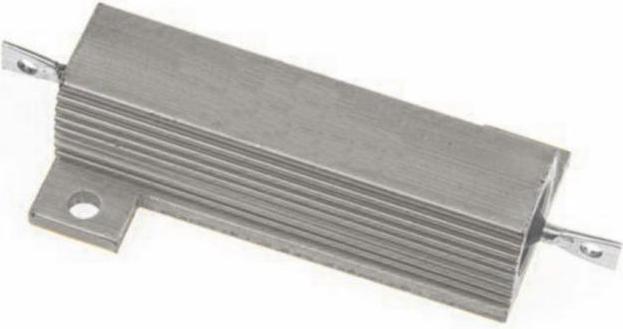

RS PRO Aluminium Wirewound Resistor 50W 6R8
Minimum order 2Delivered between Wed, 13.5. and Tue, 19.5.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Distrelec CH
Free shipping starting at 50.–
Resistor10
Product details
Resistance: 6.8Ω
Power: 50W
Enclosure type: Aluminum housing
Tolerance: ±5%
Technology: Wire-wound
Connection type: Axial
Maximum operating temperature: +200°C
Maximum temperature coefficient: -100ppm/°C
Maximum temperature coefficient: +100ppm/°C
Temperature coefficient: ±100ppm/°C
Total length: 72.5mm
Power wire-wound resistors with aluminum housing, 50W, RS Pro. These power wire-wound resistors are designed for 50 watts and manufactured according to the requirements of MIL 18546, IEC 115, and RoHS. They feature a compact size for the rated power, a high power-to-volume ratio, and are designed to maximize handling of high pulse power. Suitable for direct mounting on heat sinks with thermally conductive composite material for maximum performance.
Nominal power | 50 W |
permissiveness | 5 ± % |
Item number | 9936479 |
Manufacturer | RS PRO |
Category | Resistor |
Manufacturer No. | 1311284 |
Release date | 22.10.2018 |
Minimum order | 2 |
Resistor type | Wire resistance |
Resistor | 6.80 Ω |
Nominal power | 50 W |
permissiveness | 5 ± % |
CO₂ emissions | 31.32 kg |
Climate contribution | CHF 0.75 |
Height | 0.02 m |
Width | 0.10 m |
Length | 0.15 m |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
