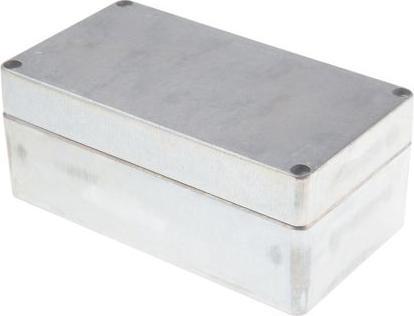

Rs Pro Aluminium Natural Enclosure 220x120x91

Housing material = die-cast aluminum
Dimensions outside = 200 x 120 x 91mm
Length outside = 200 mm
Width outside = 120 mm
Height outdoor = 91 mm
IP protection class = IP66
Color = Unpainted
Cover color = Unpainted
With flange = No
Shielded = No

DIN 1725, IEC 60529 NEMA 4X and 6P UL 508A, UL 50, UL 50E CE MIL-STD-810G (mechanical vibration and shock tests) ASTM B117 IEC 62262 IK 60068-2-75. Die-cast aluminum enclosure, IP66, untreated. A waterproof series of die-cast aluminum (ALSi12) enclosures. The enclosures meet IP66 rating and are specifically designed for harsh and demanding applications. Enclosure includes cover and base, captive stainless steel cover screws, neoprene O-ring, continuous gasket, and four copper-plated grounding screws. Features and benefits:. Protection from penetrating media to IP66 by using the continuous seal with neoprene O-rings Temperature stability of the lid seal -40 to +100 °C DIN rail mounting point Lid and base connected with captive stainless steel lid screws. Wall thickness 3mm. Frequently asked questions:. What does IP rating mean? IP rating is used to determine the effectiveness of electrical enclosure sealing against ingress of foreign objects (tools, dirt, etc.) and moisture. For more information, please refer to the SOLUTIONS section at the top of the page or click on Enclosure Selection Guide. What is included in the package?. Housing + lid. 4 cover screws.
