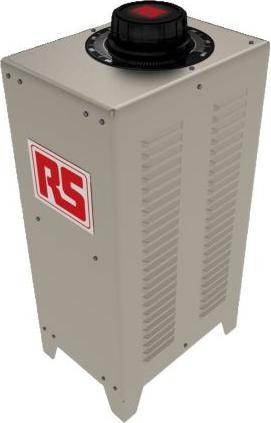

Rs Pro 3Ph 2A Enclosed Variable Transformer

Primary nominal voltage: 415V
Secondary rated voltage: 0 → 415 V, 0 → 470 V
Rated power: 1.628 kVA
Mounting type: Surface mount
Knob rotation direction: Clockwise
Number of phases: 3
Number of outputs: 3
Connection type: Cable termination
Weight: 12.9 kg
Dimensions: 150 x 200 x 330 mm
Secondary current: 2 A
Depth: 330 mm
Length: 150 mm
Primary rated current: 2 A

Encapsulated regulating transformer. Professional transformers with potted design in single-phase or three-phase versions. The transformers are not designed for line isolation but operate on line voltage. All transformers must be grounded through the ground connection studs. A rugged series of encapsulated variable transformers for SMD floor or wall mounting. Single and three-phase versions available in a variety of current ratings. Infinitely variable AC output voltage with overvoltage connection. Heavy-duty construction. High efficiency and excellent regulation. No waveform distortion. Silver plated commutator. Overload capacity. Uniform linear output. Low maintenance. Trouble-free and long life.
