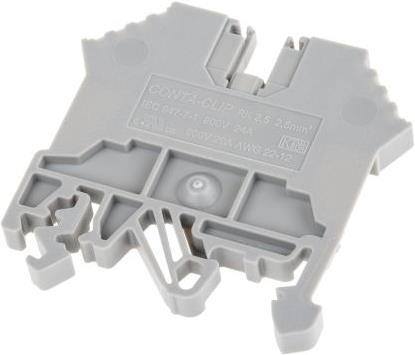

Rs Pro 2.5mm din rail terminal grey

Wire size: 0.2 to 2.5 mm²
Wire cross section: 0.2 to 2.5 mm²
Color: Grey
Rated current: 24A
Number of levels: Single
Operating voltage: 800 V
Operating temperature min: -40°C
Operating temperature max: +105°C

UL, CSA, NEMKO, GOST certified. See cross-connectors for compatibility and series or use our data sheet. Colored terminals allow for easy identification of signals or voltages. Terminal colors correspond to incoming cables, reducing wiring errors. Three-phase systems are consistently wired. An additional selection of 2.5 and 4 mm² terminal blocks in common colors is available, including the new phase colors black, brown, and gray, as well as white, orange, yellow, and red.
