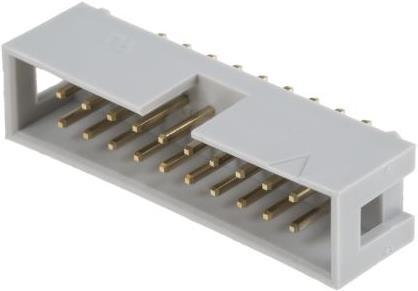

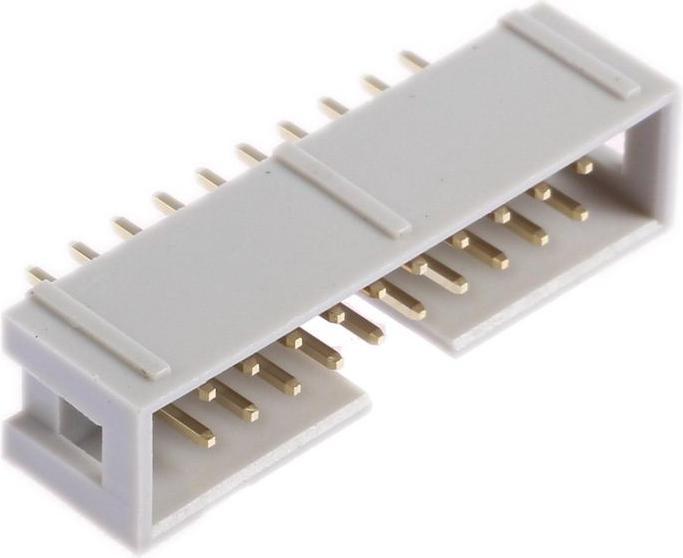

Rs Pro 20way IDC straight boxed header,25.7mm L

Minimum order 7
Ratings
BrandMore from Rs Pro
Delivered between Wed, 25.6. and Tue, 8.7.
More than 10 items in stock at third-party supplier
Supplied by

Product details

Number of contacts: 20
Number of rows: 2
Gender: Male
Pitch: 2.54 mm
Mounting type: Thru-hole
Housing orientation: Straight
Connection type: IDC
Rated current: 1 A
Contact coating: Gold
Series: SCP
Operating temperature min.: -45°C
Operating temperature max.: +105°C
Contact material: Copper alloy

Total pin strip length: 7.9 + (number of poles x 2.54) mm. Male headers in housing. 2-row male headers with housing suitable for female connectors type BT224 in version with reverse polarity protection and universal version. Molded parts made of polyester according to UL94-V with gold-plated contacts made of copper alloy. Solder terminals with solder overflow on a pitch of 0.1" are suitable for standard PCBs with 1.6 mm thickness.

Key specifications

Plug type
DC connector
Cable + connector type
Plug connectors
Item number
9948071

General information

Manufacturer
Rs Pro
Category
Cables + Plugs
Manufacturer no.
6257296
Release date
22.10.2018
External links
Manufacturer's site (de)
Minimum order
7
Minimum order
7

Material

Material group
Metal
Material
Copper

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
DC connector
Max. temperature
105 °C
Min. temperature
-45 °C
mounting type
Push-through mounting
Manufacturer Type
6257296
Connectors Design
Flat
Number of cores
20 x

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
4.60 cm
Width
1.20 cm
Height
1.10 cm
