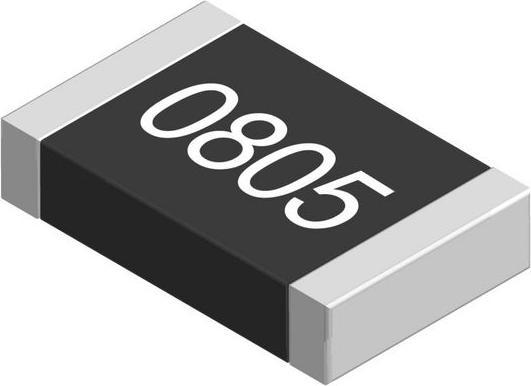

RS PRO 0805 Resistor, 0.125W, 1%, 560R

Resistance: 560Ω
Case shape: 0805
Tolerance: ±1%
Power: 0.125W
Temperature coefficient: ±100ppm/°C
Technology: Thick film
Dimensions: 2 x 1.25 x 0.5mm
Length: 2mm
Depth: 1.25mm
Height: 0.5mm
Series: RS
Operating temperature min.: -55°C
Operating temperature max.: +155°C
Connection type: Soldering eye
Housing type: Ruthenium oxide

Resistor format 0805, RS series - (250 Ω → 2.49 Ω). Thick film chip resistor with an extra reliable multilayer electrode construction, compatible with all soldering methods. Resistor applications include telecommunications equipment, radios and tape recorders, TV sets, video cameras, watches, calculators, automotive industry, computers, and instruments.
