Product details
Resistance: 120Ω
Housing shape: 0603
Tolerance: ±1%
Power: 0.1W
Temperature coefficient: ±100ppm/°C
Technology: Thick film
Dimensions: 1.6 x 0.8 x 0.45mm
Length: 1.6mm
Depth: 0.8mm
Height: 0.45mm
Operating temperature min.: -55°C
Operating temperature max.: +155°C
Connection type: Soldering eye
Temperature coefficient max.: +100ppm/°C

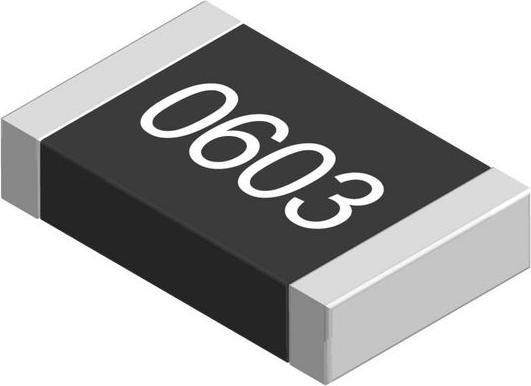

Resistor format 0603, RS series - (25 Ω to 199.9 Ω). Thick film chip resistor with an extra reliable multilayer electrode construction, compatible with all soldering methods. Resistor applications include telecommunications equipment, radios and tape recorders, TV sets, video cameras, watches, calculators, automotive industry, computers, and instruments.
