RME Audio Dtox-32

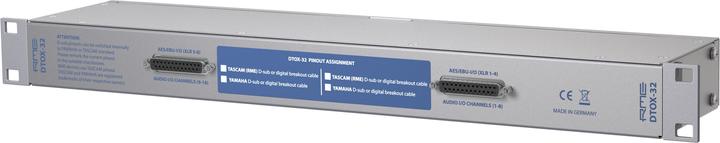

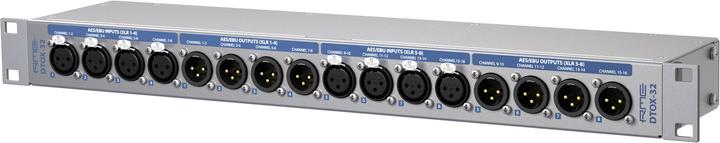

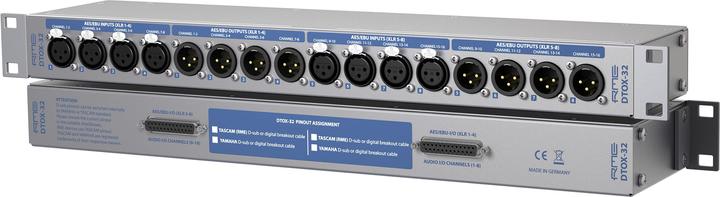

The DTOX-32 breakout console is the optimal extension for digital multi-channel interfaces. It includes two sets of D-sub to 4 x XLR Male and 4 x XLR Female. This replaces standard breakout cables from D-sub to XLR with a professional, stable, reliable rack-mounted system. The DTOX-32 is pin-compatible with TASCAM (RME) and Yamaha formats for AES/EBU breakouts. DTOX-32 (and also DTOX-16) features removable rack ears and can be mounted in the rack from either the front or the back. DTOX-32 can be configured for 2 different wiring standards, in TASCAM-compatible format and in Yamaha-compatible format. Unless otherwise ordered, it is configured in the TASCAM (RME) format upon delivery. The respective pin configuration is achieved by rearranging an internal connector in the housing part with the XLR connections. For the conversion, you only need a Phillips screwdriver (size PH-2).
