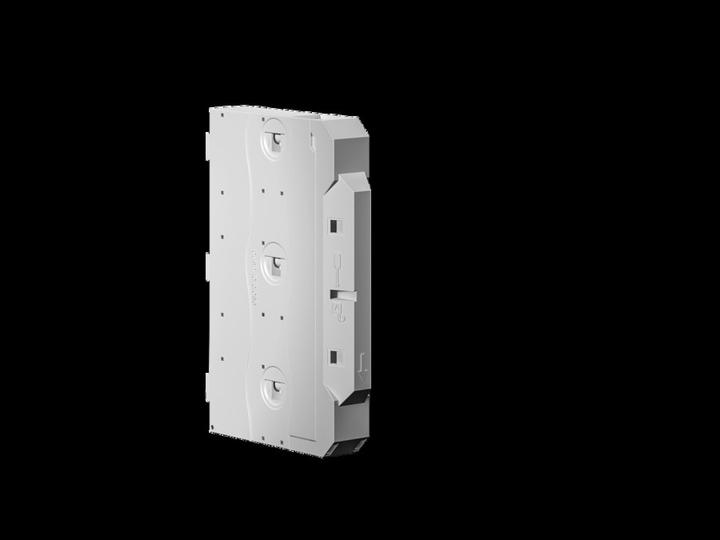

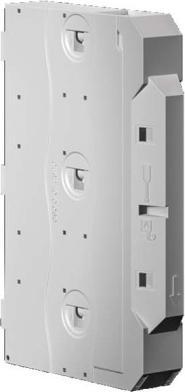

Rittal Connection adapter 9635.200 1 pc

The Rittal connection adapter 9635.200 is a versatile electronic accessory designed for direct mounting on printed circuit boards. It allows for the connection of conductors up to 16 mm² via spring clamp terminals and is ideal for the assembly of switchgear and protective devices with DIN rail mounting. The adapter is made of high-quality PA material and meets the fire behavior requirements according to UL 94-V0. With a rated operating voltage of 690 V AC and 600 V DC, as well as a maximum current rating of 63 A, this adapter is suitable for various applications in electrical engineering. The connection adapter is 3-pole and offers DIN rail mounting for easy installation. It is a reliable and robust product manufactured in Germany and approved for the IEC and UL markets.

• Direct mounting on the board for easy installation
• Spring clamp terminals for conductors up to 16 mm²
• PA material with UL 94-V0 fire behavior
• 3-pole design with a maximum of 63 A
• Compatible with various switchgear and protective devices.
