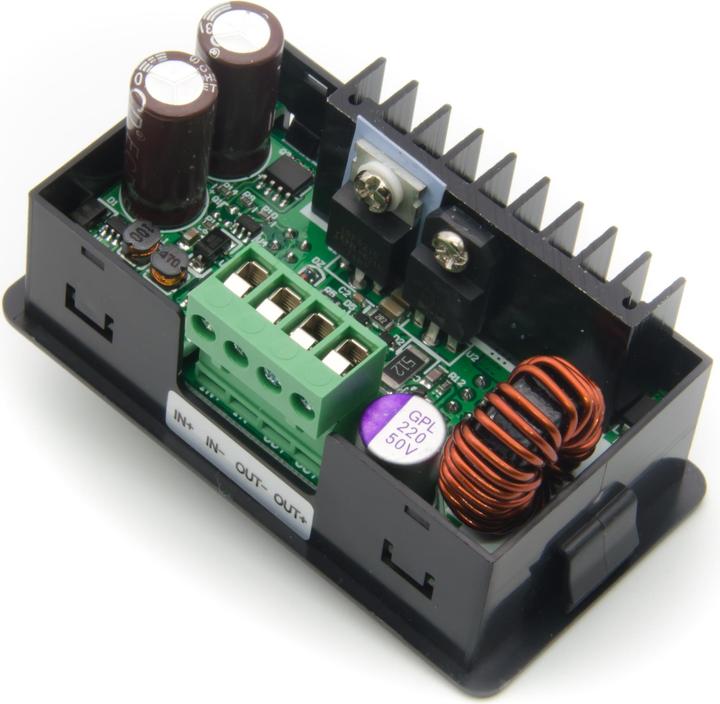

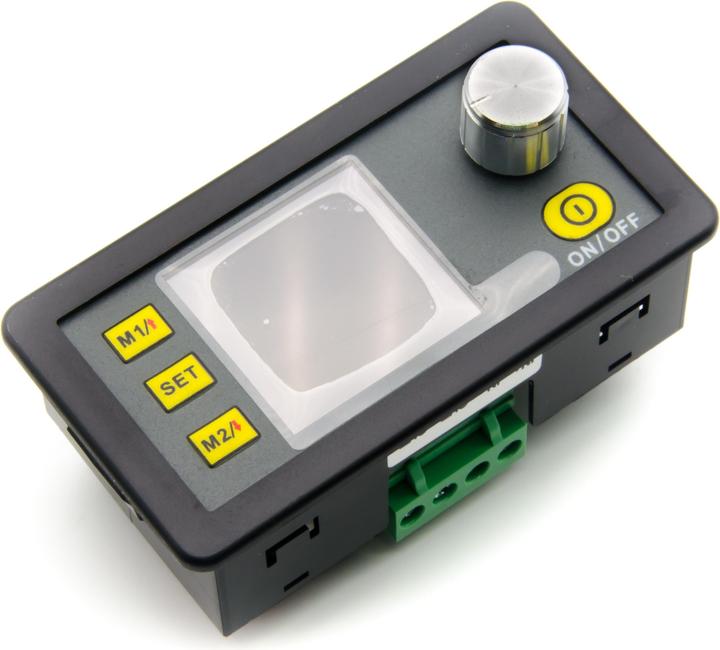

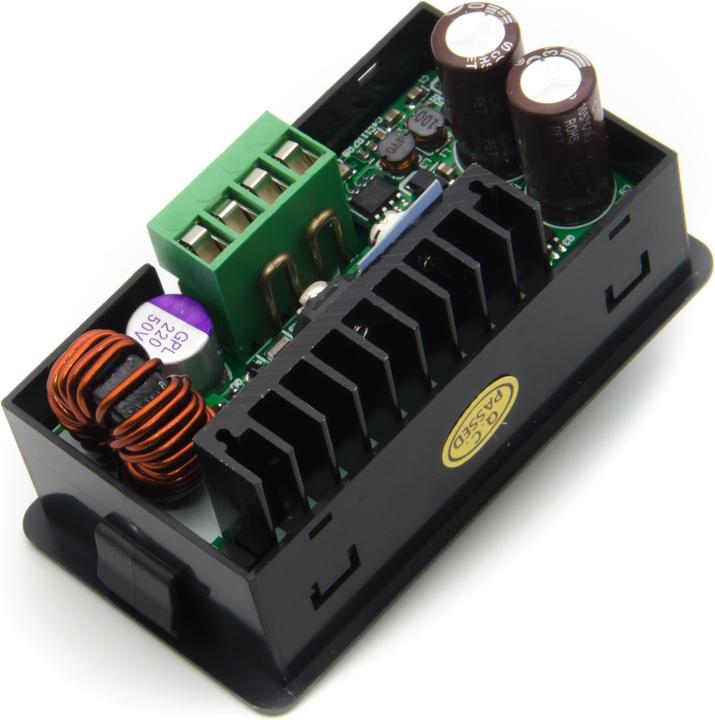

RD Tech DPS5005 programmable laboratory power supply DC-DC converter 50V 5A

The DPS5005 is a laboratory power supply with regulated voltage and current output. This voltage converter is perfect for building your own lab power supply. All you need is an old PC power supply or a switch-mode power supply. The output voltage can be adjusted in the range of 0V to 50V DC with a resolution of 0.01V. The output current can be set between 0A to 5A in 1mA increments. The power supply features ten programmable memory slots where you can save your settings. The color display always visually presents the current measurements such as input voltage, output voltage, output current, and power.

Helpful information about the DP50V5A/DPS5005:
You must ensure that the input voltage is at least 1.1 times higher than the output voltage. Caution: The power supply should only be powered with DC voltage from 6V to 55V! We recommend using our 48V switch-mode power supply, but you can also use an old PC power supply. If the power supply is mounted in a case, it is essential to ensure adequate ventilation for heat dissipation.

Recommended accessories for the DP50V5A:
48V 7.3A AC/DC 350W switch-mode power supply S-350-48

Technical details:
Manufacturer: RD RuiDeng
Model: DPS5005
Input voltage range: 6V to 55V DC
Output voltage range: 0V to 55V DC
Output current: 0A to 5A
Output voltage resolution: 0.01V (10mV)
Output current resolution: 0.001A (1mA)
Output power range: 0-250W
Cutout for mounting in a case: 71 x 39mm
Dimensions: 79 x 43 x 48mm
Weight: 108g

Delivery includes:
1x RD DPS5005 programmable laboratory power supply DC-DC converter 50V 5A.
