Schneider Electric

Schneider Electric Foot Switch, Simple XPER311

Manufacturer: Schneider Electric
Description: Simple foot switch with protective cover 2Ö+2S
Type: XPER311
Command Type: On or Off
With Protective Cover: Yes
With Locking: No
Material: Metal
With Protective Insulation: No
Color: Orange
Number of Switching Positions: 1
Number of Contacts as Normally Open: 2
Number of Contacts as Normally Closed: 2
Switching Function Latching: No
Suitable for Safety Functions: Yes
Rated Operating Current Ie at AC-15, 230 V: 3 A
Protection Class (IP): IP66
Protection Class (NEMA): Other
Width: 160 mm
Height: 135 mm
Depth: 186 mm

Schneider Electric Foot Switch, Simple XPER311: Additional Details
The Harmony foot switches XPE provide a convenient solution for turning industrial machines on or off with multiple operating modes such as pulse operation, momentary operation, or continuous operation. This foot switch, made of metal, is painted orange. It features a pedal for direct actuation. The protective cover safeguards the pedal from falling objects, for example. The auxiliary switches have a switching stage with 2 normally open and 2 normally closed contacts. Thanks to the high IP protection class and the wide operating temperature range, it is well-suited for harsh environmental conditions. With certifications and compliance with standards, its use is ensured in many countries. The Green Premium environmental label provides detailed information on material contents, environmental impacts, and circular economy, supporting your sustainability goals.

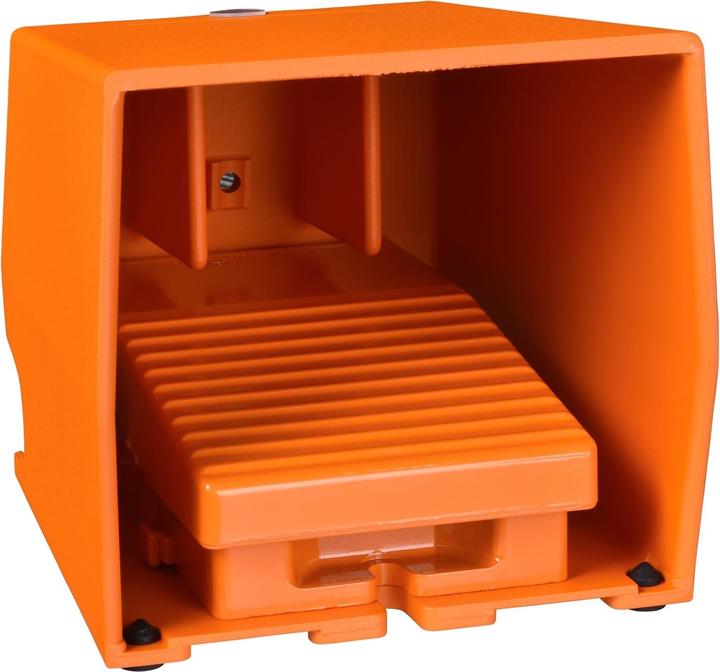

Actual product image Schneider Electric single foot switch - IP66 - with cover -
