Raspberry Pi TV UHAT - Digital TV HAT for DVB-T and DVB-T2

Digital TV HAT

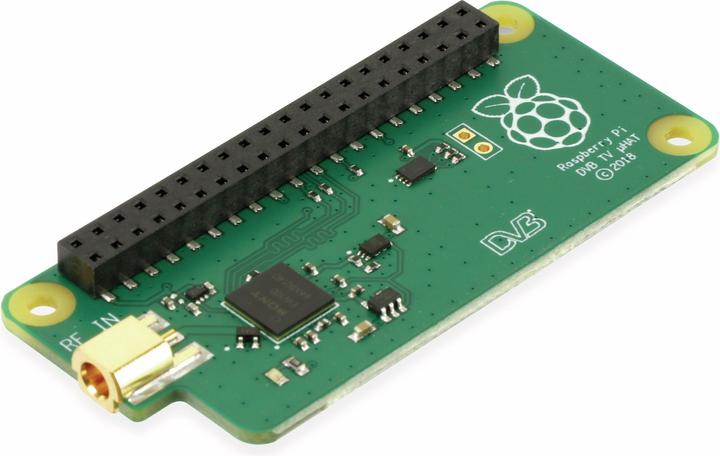

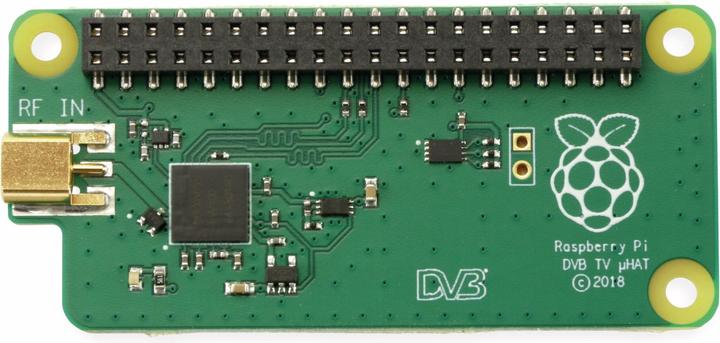

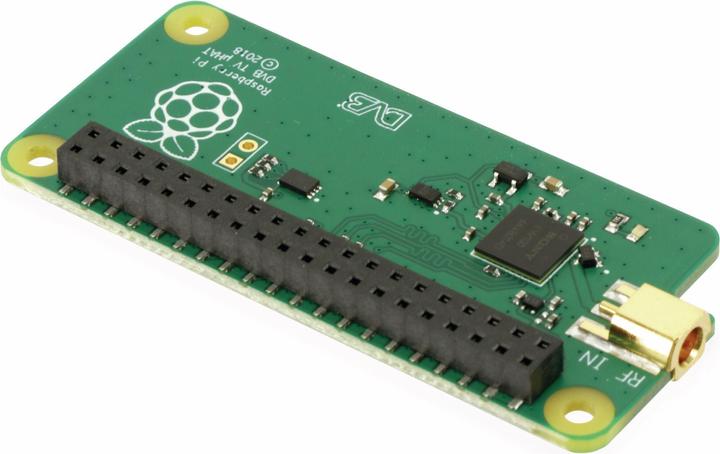

With the Raspberry Pi TV HAT, you can receive digital terrestrial TV broadcasting systems, including DVB-T and DVB-T2, on a Raspberry Pi.

The board allows you to receive and watch television on a Raspberry Pi or create a TV server that streams received television over a network to other devices. The TV HAT can be used with any 40-pin Raspberry Pi board as a server for other devices on the network. The performance when receiving and viewing TV broadcasts on the Pi itself may vary. Therefore, we recommend using a Raspberry Pi 2, Pi 3, or higher.

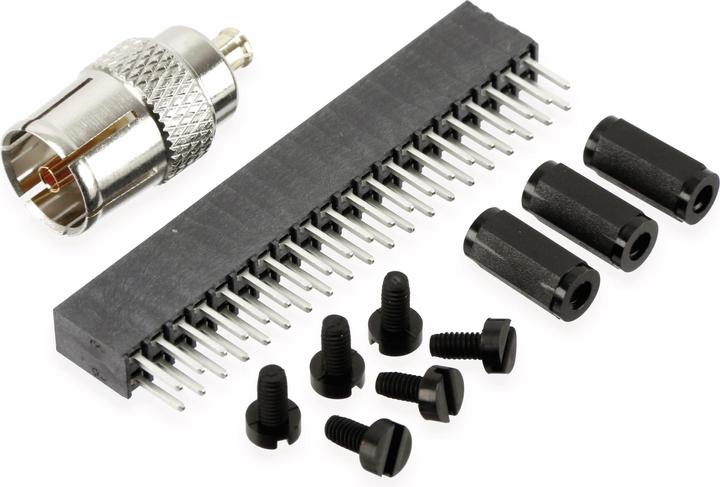

The Raspberry Pi TV HAT follows a new HAT form factor, which is described below. The board comes with a set of mechanical spacers, a 40-pin header, and an antenna adapter.

• Sony CXD2880 TV tuner
• Supported TV standards: DVB-T2, DVB-T
• Reception frequencies: VHF III, UHF IV, UHF V
• Channel bandwidth: DVB-T2: 1.7 MHz, 5 MHz, 6 MHz, 7 MHz, 8 MHz; DVB-T: 5 MHz, 6 MHz, 7 MHz, 8 MHz
• Operating temperature: 0°C - 50°C.
