Product details
Digital TV HAT

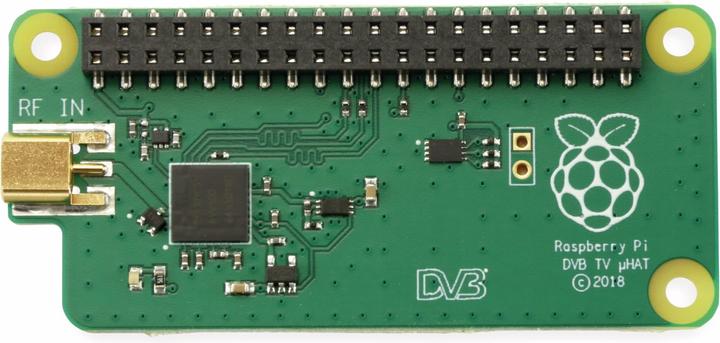

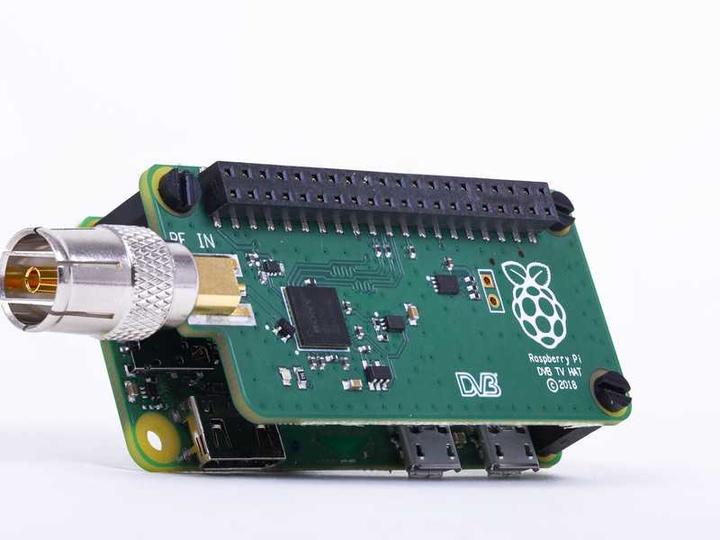

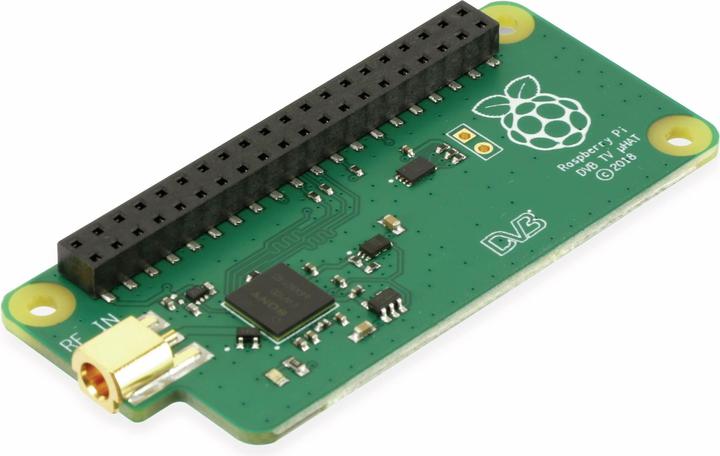

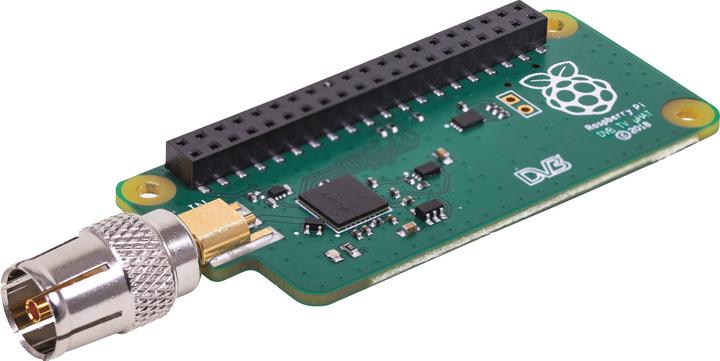

With the Raspberry Pi TV HAT, you can receive digital terrestrial TV broadcasting systems, including DVB-T and DVB-T2, on a Raspberry Pi.

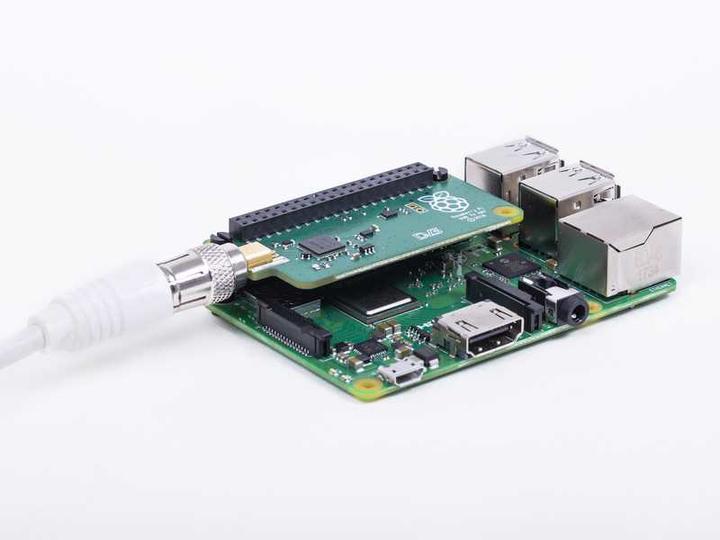

This board allows you to watch television on a Raspberry Pi or create a TV server that streams received television over a network to other devices. The TV HAT can be used as a server for other devices on the network with any 40-pin Raspberry Pi board. The performance when receiving and viewing TV broadcasts on the Pi itself may vary, so we recommend using a Raspberry Pi 2, Pi 3, or higher.

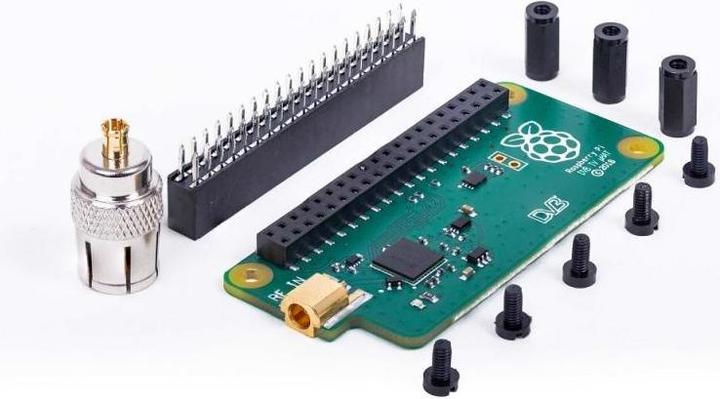

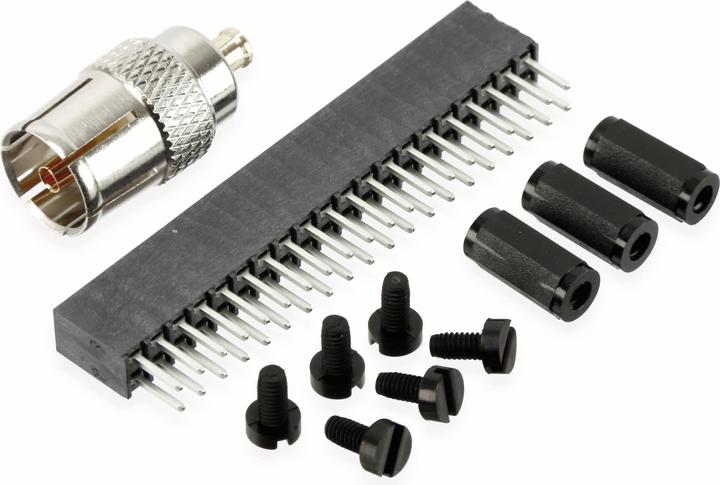

The Raspberry Pi TV HAT follows a new HAT form factor, which is described below. The board comes with a set of mechanical spacers, a 40-pin header, and an antenna adapter.
Sony CXD2880 TV Tuner
Supported TV Standards: DVB-T2, DVB-T
Reception Frequencies: VHF III, UHF IV, UHF V
Channel Bandwidth: DVB-T2: 1.7 MHz, 5 MHz, 6 MHz, 7 MHz, 8 MHz; DVB-T: 5 MHz, 6 MHz, 7 MHz, 8 MHz
Operating Temperature: 0°C - 50°C.
