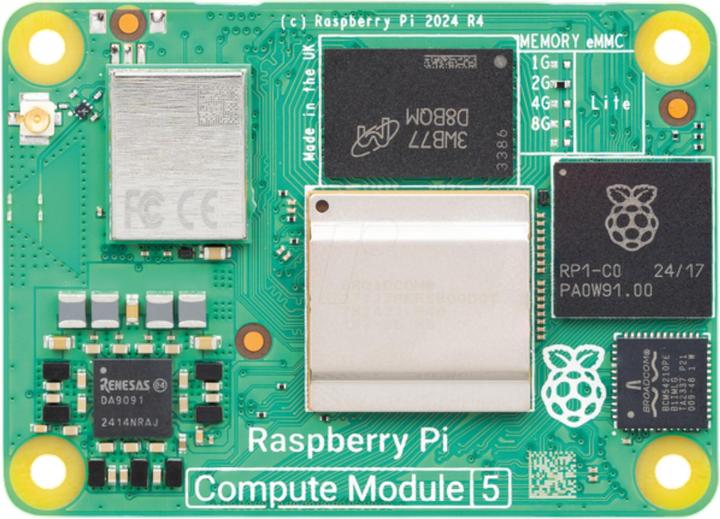

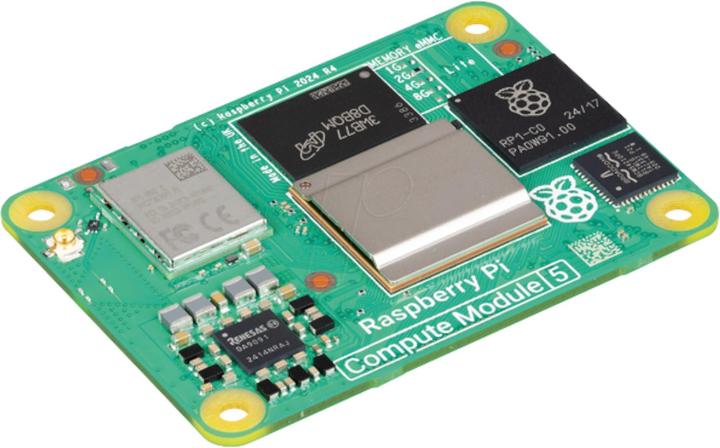

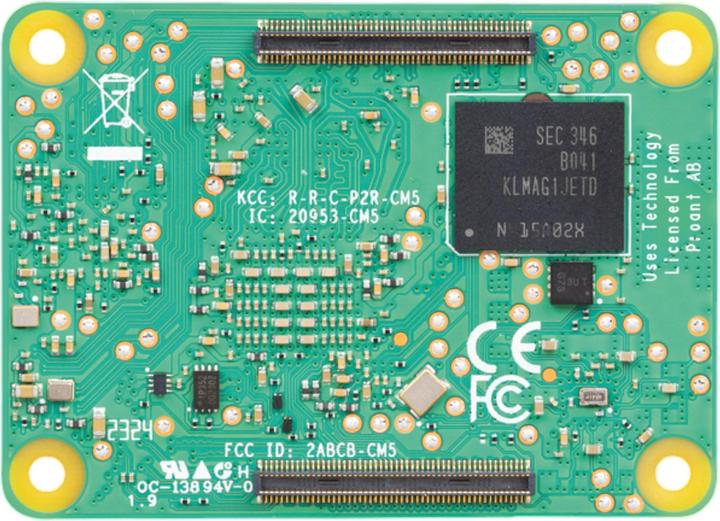

Raspberry Pi CM5102016 Compute Module 5 WiFi 2GB RAM 16GB eMMC
6 pieces in stock at third-party supplier
Product details
Discover a new generation of compact computing power with the CM5102016 Raspberry Pi Compute Module 5. This powerful module combines cutting-edge technology with versatile applications, making it perfect for your next project. With integrated WiFi, 2 GB of RAM, and a fast 16 GB eMMC storage, the module provides optimal conditions for embedded systems, automation, media playback, or edge computing. The CM5 is based on the Broadcom BCM2712 SoC with a Quad-Core CPU, ensuring outstanding performance. Its compact form factor is ideal for industrial applications, as well as for ambitious makers and tinkerers. The module's high energy efficiency makes it a perfect companion for continuous operation or mobile applications. The standardized interface allows the Compute Module 5 to be seamlessly integrated into various systems. Improved heat dissipation ensures stable operation, even under compute-intensive tasks. Thanks to the fast eMMC storage unit, operating systems boot up quickly, and data access is particularly swift. With integrated WiFi connectivity, external adapters are unnecessary – you are directly connected wirelessly. Whether as the heart of an AI project or as a computing unit in a digital dashboard, this little powerhouse excels in all scenarios. Community support and documentation around the Raspberry Pi ecosystem make it easier for you to get started and continue developing.
Recommended Accessories:
Mini Base Board (A) for Raspberry Pi Compute Module 5
Raspberry Pi Compute Module 5 3007 Fan 5V
Technical Specifications:
Manufacturer: Raspberry Pi
Manufacturer SKU: SC1588
Model: CM5102016
Processor: Broadcom BCM2712 Quad-Core Cortex-A76 @ 2.4GHz
RAM: 2 GB LPDDR4X
Storage: 16 GB eMMC Flash
Connectivity: 2.4/5GHz WiFi, Bluetooth 5.0
Form Factor: 200-pin SODIMM
Power Supply: 5V
Operating Temperature: 0°C to 50°C
Dimensions: 55 x 40 x 4.7 mm
Weight: 16 g.
Processor family | ARM, Broadcom |
Processor type | Cortex-A76 |
Clock speed | 2400 MHz |
Working memory | 2000 MB |
Number of cores | 4 |
Item number | 55117019 |
Manufacturer | Raspberry Pi |
Category | Single board computer kits |
Manufacturer no. | CM5102016 |
Release date | 3.3.2025 |
Target group | Adults |
Processor family | ARM, Broadcom |
Processor type | Cortex-A76 |
Clock speed | 2400 MHz |
Working memory | 2000 MB |
Number of cores | 4 |
Power supply | Electrical connection |
Operating voltage | 5 V |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 5 / 802.11ac |
Bluetooth version | 5.0 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x), USB-A 3.0 (2x) |
Network connections | RJ45 Gigabit Ethernet (1x) |
Number of I/O | 30 |
HDMI version | 2 |
Max. port speed | 1000 Mbit/s |
Memory card type | SDIO |
Additional connections | GPIO, I2C, I2S, PWM, SPI, UART |
Country of origin | China |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Length | 55 mm |
Width | 40 mm |
Height | 4.70 mm |
Weight | 16 g |
