RAK Wireless WisBlock RAK1921 OLED Display

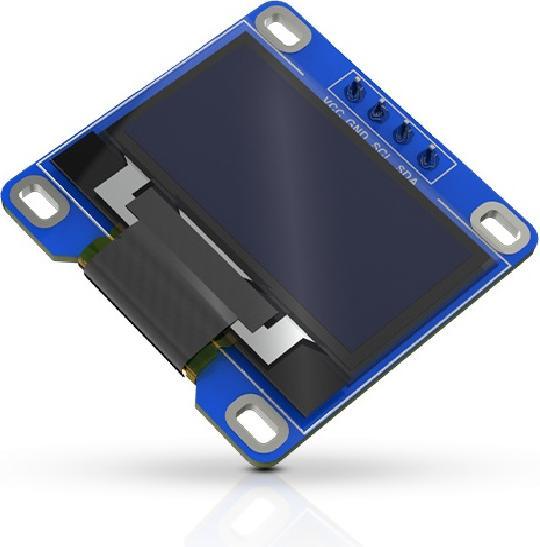

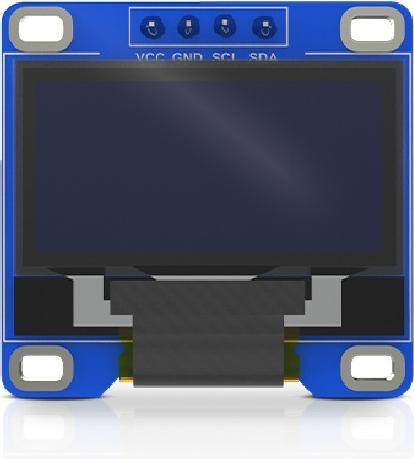

This is an OLED display for your WisBlock project from RAK Wireless. The RAK1921 OLED display is perfect for visualizing the data of your WisBlock IoT project. The display is not mounted on a sensor or I/O slot, allowing it to be used in addition to a fully populated base board. It is soldered to a 4-pin input on the base board. You can either solder it directly with a double 4-pin header or make it pluggable with a 4-pin header and socket.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock base board. Unlike traditional connectors, the modules are secured to the base board with screws, providing a secure and reliable industrial-grade attachment. Thanks to its modular and compact design, WisBlock is particularly suitable for prototyping applications in both professional and hobbyist environments.

Features:

• 0.96" OLED display
• 128x64 pixel resolution
• I2C interface
• Low power consumption

Technical details:

• Manufacturer: RAK Wireless
• Manufacturer SKU: 110004
• Model: RAK1921
• Color: Black and White
• Driver IC: SSD1306
• Resolution: 128x64
• Size: 0.96"
• Interface: I2C

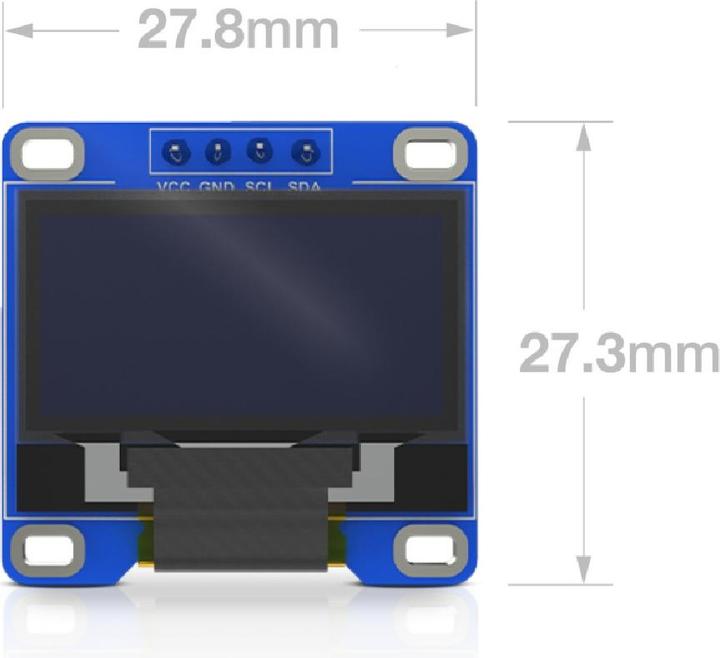

• Dimensions: 27.8 x 27.3 x 6 mm
• Weight: 11 g

Included in the package:

• 1x WisBlock RAK1921 OLED display
• 1x double 4-pin header
• 1x 4-pin header
• 1x 4-pin socket
• 1x screw set with spacers.
