RAK Wireless WisBlock RAK19003 Base Board

Ratings
BrandMore from RAK Wireless
Delivered between Thu, 10.7. and Fri, 11.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

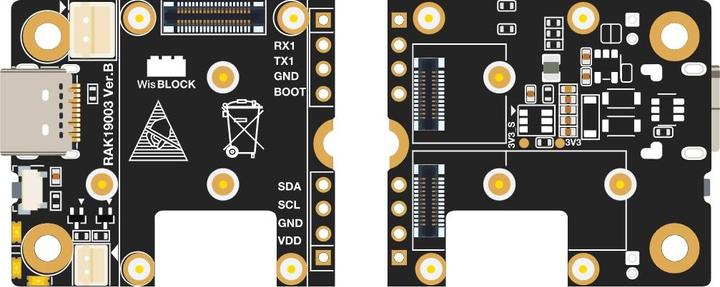

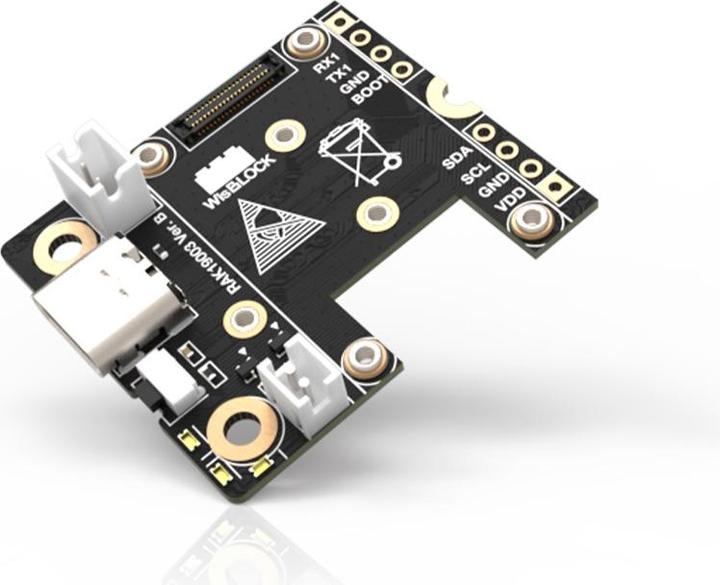

This is the base for all WisBlock modules from RAK Wireless. Two WisBlock sensor modules and one CPU module can be connected to the WisBlock Base Board. The modules are mounted on the board with the M2 screws supplied. The WisBlock Base Board supports 3 different power supplies as standard. Depending on the application, you can choose between 5V USB, 3.7V LiPo batteries and 5V solar panels or a combination. The WisBlock Base Board enables low power applications by allowing power to be switched on and off for the WisBlock Sensor and from another WisBlock category with slots.
RAK Wireless' WisBlock ecosystem offers compact and modular solutions to create your own IoT LoRaWAN nodes. A wide variety of CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike conventional plug-in connections, the modules are fixed to the base board with screws. This creates a secure and reliable mounting with industrial quality. Thanks to the modular and compact design, WisBlock is particularly suitable for applications in prototype construction in the professional or hobby sector.

Features:
Plug and Play slots for Wisblock Core, Sensor, Interface, Wireless, Display, Extra, Storage and Power Module.
5V solar charge controller for Lipo battery
Supports three different power supplies
I2C, UART, GPIO connections
2 programmable LEDs
Reset button
USB debug port
USB-C

Technical details:
Manufacturer: RAK Wireless
Manufacturer SKU: 110035
Model: RAK19003
Power supply: 5V USB/ 3.7V LiPo battery/5V solar panel
USB Interface: USB-C
Pin connections: 3x 4pin (UART, GPIOS, I2C, power, etc)
WisBlock Slots: 2x sensor, 1x CPU slot
Dimension: 35 x 30 x 9mm
Weight: 35g

Scope of delivery:
1x WisBlock RAK19003 Base Board
1x USB-C cable
1x screw set.

Key specifications

Item number
24893135

General information

Manufacturer
RAK Wireless
Category
Development boards + Kits
Release date
26.3.2023

Power supply

Power supply
USB power delivery
Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x screw set, 1x USB-C cable, 1x WisBlock RAK19003 Base Board

Product dimensions

Weight
35 g

30-day right of return
24 Months Warranty (Bring-in)
