RAK Wireless WisBlock RAK14006 Rotary Encoder

Ratings
BrandMore from RAK Wireless
Delivered between Tue, 5.8. and Wed, 6.8.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

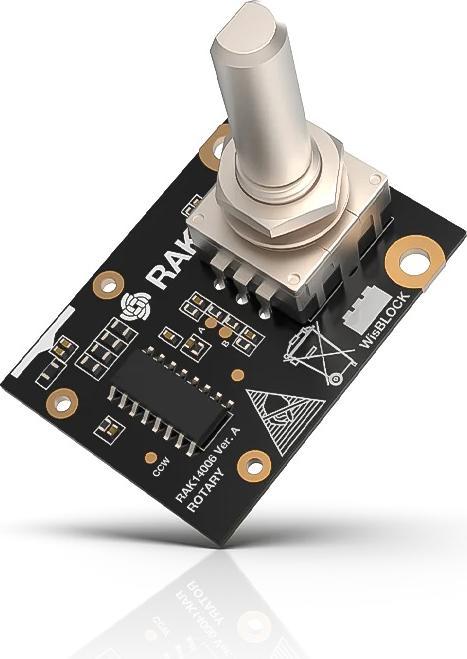

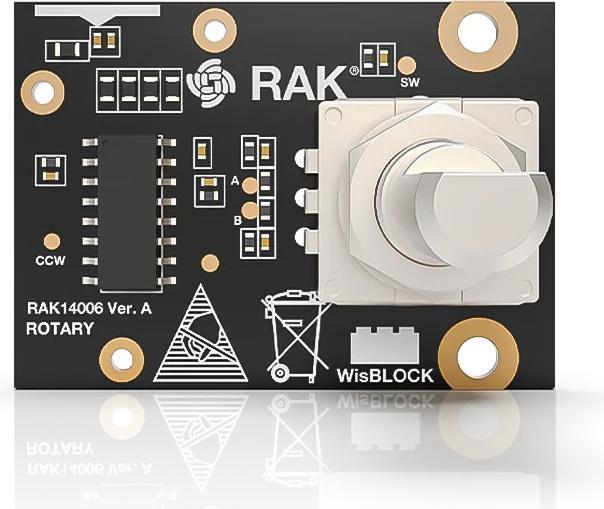

The RAK14006 includes a rotary encoder module designated PEC11L-4125F-S0020 from Bourns. The switch allows for the detection of rotation direction and the number of steps during user inputs. Additionally, there is a separate push button that can be used independently.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the Base Board with screws, providing a safe and reliable attachment with industrial quality. Due to its modular and compact design, WisBlock is particularly suitable for applications in professional or hobby prototyping.

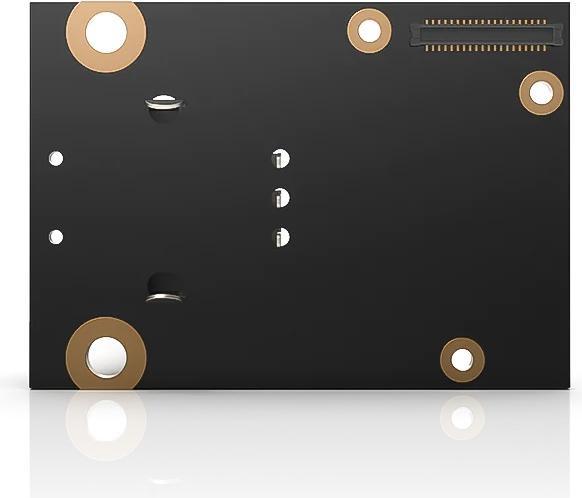

Note: The module connects to a RAK BaseBoard via the 40-pin IO slot.

Recommended accessories:
WisBlock RAK5005-O Base Board
WisBlock RAK19007 Base Board 2nd Gen
WisBlock Base Board RAK19010 with Power Slot
WisBlock Dual IO Base Board RAK19011 with Power Slot

Features:
Rotary encoder with an independent push button

Technical details:
Manufacturer: RAK Wireless
Manufacturer SKU: 100064
Model: RAK14006
WisBlock connector: WisBlock IO
Rotary encoder:
Bourns PEC11L-4125F-S0020:
Type: Incremental
Resolution: 20 PPR
Number of detents: 20 (clicks)
Power supply: 3.3V
Dimensions: 25 x 45 x 31.8 mm
Weight: 9.8 g

Delivery includes:
1x WisBlock RAK14006 Rotary Encoder.

Key specifications

Development board type
Kit
Item number
35993604

General information

Manufacturer
RAK Wireless
Category
Development boards + Kits
Release date
31.5.2023

Development board properties

Development board type
Kit

Power supply

Operating voltage
3.30 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
WisBlock RAK14006 Rotary Encoder
Additionally required (not included)
WisBlock Base Board RAK19010 with power slot, WisBlock Dual IO Base Board RAK19011 with power slot, WisBlock RAK19007 Base Board 2nd Gen, WisBlock RAK5005-O Base Board

Product dimensions

Length
31.80 mm
Width
25 mm
Height
45 mm
Weight
9.80 g
