CHF88.90

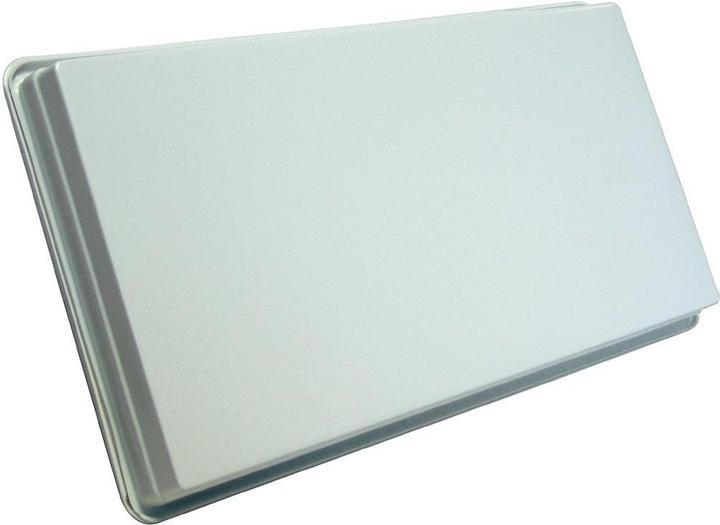

Selfsat H30d
Flat antenna, 33.70 dB, DVB-S / -S2
Questions about Selfsat H30d
What would you like to know?
0 questions and answers
I don't know,
But there are matching pictures to stick on it
Hello,
I don't know if it works with this antenna. You will need a larger diameter antenna.
This is a satellite dish (DVB-S) so if you attach it to a wagon you will need to point it at your preferred satellite (e.g. Astra) every time you want to use it. This model (the twin) has two LNB inputs, so you can receive two satellite signals at the same time, i.e. to two devices. The other one listed has a single input.
I suspect what you really want is DVB-T, but you should also be aware that Switzerland ceased DVB-T transmission in 2019.
As long as they are free-access channels, yes.
According to my research, this should work without any problem with the existing contract.
Helpful answer
Hello
-The alignment should already be accurate...First set up roughly, when a picture has been found, adjust to a maximum using the signal strength by finely changing the direction and inclination.
-It doesn't matter whether you use a large or small dish, as long as it is a satellite receiver.
- Every cable has a certain loss which attenuates the signal, the longer the cable, the greater the loss. if the cable is infinitely long, there will eventually be nothing at the front! How many is a few metres........ In the normal case it is enough.
Hope I could help.
Greetings
Helpful answer
no cable, just all the hooks to attach it to a pole or wall.
No unfortunately no switch the antenna only has a fixed orientation
Good day
It is for 4 TV.
Quad LNB integrated and pre-mounted (for 4 participants).
suitable for e.g. Astra, Hotbird, Eutelsat or Sirius
Reception of digital satellite and radio programmes
Technical data:
Size: 51.2cm x 27.2cm x 5.2cm
Weight 4,0Kg
Input frequency 10,7-12,75 Hgz
Polarisation (horizontal and vertical)
Receive power (Gain): 33.7 dB at 12.75 GHz
Polarisation Dual Linear (horizontal and vertical)
Scope of delivery:
High quality flat antenna
Wall bracket
mast/balcony mount
Compass
Screw set
Tools
Instruction manual
2 years warranty
Scope of delivery: flat antenna, wall bracket, mast/balcony bracket, compass, screw set, tools
Required accessories: digital satellite receiver, coaxial cable
Operating instructions:
https://cdn.billiger.com/dynimg/1eiXfGmh4QBIxEMUESTe_zt4H9rycHjeBa9LTdXG2DAfU7Y12J7VhAg8TsC01qvOIvfgY42VP3-7Wao5OywNQs/SelfSat-H30D2-Bedienungsanleitung-d0375f.pdf
https://www.hm-sat-shop.de/antennen/diverse/386/selfsat-h30d4-flachantenne-quad-lnb-version
Twin has two connections for two participants / devices (Twin LNB). Single has only one connection (Single LNB).
Hello
I do not have a rotor in use. I use 2 selfsat. I once had a motor on a parabolic reflector - it worked great, but you had to wait a short time for the motor to turn the parabolic antenna when you changed channels. My recommendation - if space allows, better 2 selfsats than one motor.
I don't really see a problem, as long as there is nothing in the way. However, the horizontal alignment of the antenna is a bit tricky; the satellites are close together. I have had good success with the website sat.drossel-services; i.e. alignment according to the position of the sun. The website explains how to do it. Good luck
With the Selfsat H30D2, only one satellite can be controlled at a time. If you want to control two different satellites at the same time, you need another Selfsat H30D2.
I recommend you to read the following article:
http://www.digitaler-sat-receiver.com/ratgeber/sat-empfang-auf-dem-balkon-hinter-einem-fenster
My opinion: Possible yes, recommend no. Good luck!
The Selfsat H50D. H30D. H21D. Should be suitable for Astra 1and 2, Türksat, Hotbird, Eutelsat5 west A and Hispasat according to the operating instructions.
As can be seen in the specifications, the measurements of your product are:
Depth 5.80 cm
Width 512 cm
Height 277 cm
Diameter 55 cm
Weight 4000 g
The antenna can be attached to a tube of min. 40mm. However, the holder is optimised for a wall.
Almost all receivers can be used. Technisat are user-friendly.
Yes, only one satellite per antenna adjustment. However, with a suitable satellite finder, the change can be made quickly.
23 of 23 questions
