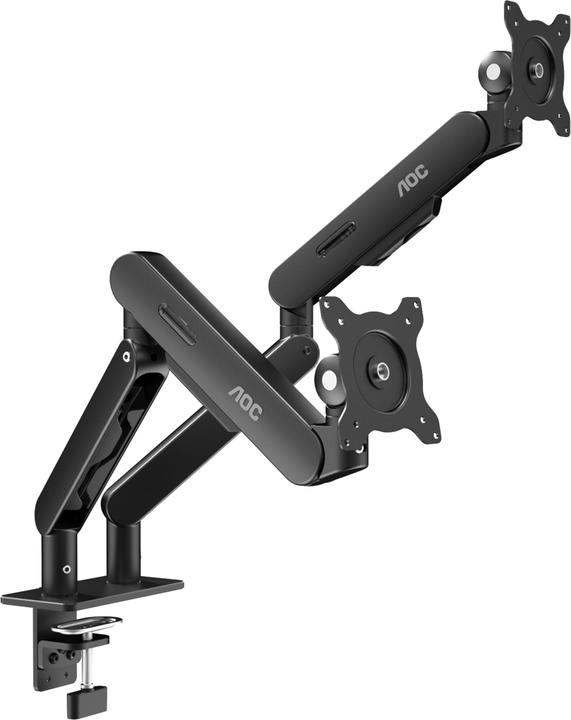

Questions about AOC AM420B

Yes, you can attach two 27" monitors to this mount as it is suitable for monitors up to 34 inches and supports a weight of up to 9 kg per arm. The mount allows you to flexibly adjust the monitors so that you can place one in the centre and the other to the right. The mechanics of the mount ensure that the monitors remain stable, even if they are not positioned in the centre.

Yes, you can attach a 34-inch monitor and a 27-inch monitor to this mount. The mount supports up to two monitors with a size of 17 to 34 inches and a weight of up to 9 kg per monitor. Both monitors must support VESA mounting sizes of 100 x 100 mm or 75 x 75 mm, which is the case for most monitors. It is advisable to check the specific specifications of the monitors to ensure compatibility.

On the AOC product page you can see pictures of the C-clamp system which is mounted through a hole. This is why the C-clamp system is also narrower than the plate above it that goes on the table.

Yes, it is possible to mount two Curve screens with a size of up to 34 inches, as the mount is designed for monitors up to 34.02 inches and supports two monitors. The maximum payload per arm is 9kg, which may be sufficient depending on the weight of the Curve screens. Make sure that the screens have the VESA mounting grid of 100 x 100 mm or 75 x 75 mm to mount them correctly.

The AOC AM420B monitor dual arm mount allows two monitors to be mounted side by side, but with some limitations in terms of space requirements and height adjustability. ### Space requirement - The mount has a stretch length range of 455 mm, which means that the monitors can be placed in a desired position, but it will still take up a certain amount of space towards the back, especially if the monitors are to be placed in a close position to each other. ### Height adjustability - The height adjustability of the mount is 250 mm and the maximum height is 495 mm. This makes it possible to adjust the monitors from a higher position down to the table. You can therefore adjust your 27" monitors all the way down to the table to achieve the optimum viewing angle. Overall, the AOC AM420B is a flexible solution that both saves space and offers high ergonomics and adaptability.

approx. 9cm at the top, almost 7cm at the bottom with the locking screw

Yes, it is possible to use a 34" ultrawide monitor and a 32" monitor together with the AOC AM420B monitor mount, but there are some conditions that must be met: - VESA mounting compatibility: both the 34" ultrawide monitor (e.g. AOC CU34G2XP/BK) and the 32" monitor (e.g. AOC CQ32G2SE/BK) must support VESA mounting sizes of 100 x 100 mm or 75 x 75 mm, which applies in this case. - Maximum monitor size: The AM420B mount supports monitors ranging in size from 17" to 34", which covers both monitors. - Maximum weight: Each monitor may weigh a maximum of 9 kg, which applies to most monitors of this size. - Arrangement: The mount is designed to hold two monitors side by side, not on top of each other. It is therefore safe to arrange the monitors side-by-side. It is advisable to check the specific specifications of the monitors and the mount directly with the manufacturers or in the user manuals to confirm compatibility.

The AOC AM420B monitor mount offers multiple mounting methods to attach it to your desk. - You can attach the mount with a clamp (C-Lamp) as well as with a grommet method (drill holes in the table). - The grommet method allows the bracket to be screwed directly into holes drilled in the table, providing a firm and secure attachment. So you have the choice between these two methods, depending on your preference and the conditions of your table.

Yes, the AOC Monitor 24G4XE is probably compatible with the AOC Monitor Mount AM420B, but there are a few things to check: - The AOC 24G4XE supports VESA mounting, which is a requirement for compatibility with the AM420B. The AM420B supports VESA mounting sizes of 100 x 100 mm and 75 x 75 mm. - The 24G4XE monitor weighs less than 9kg, which is within the weight range of the AM420B, which supports up to 9kg per monitor. However, it is advisable to check the specific specifications of the mount and monitor directly with AOC or in the user manuals to confirm compatibility.

The Samsung Odyssey G5 34" is likely to be compatible with the AOC AM420B monitor mount if certain conditions are met: - Check if the Samsung Odyssey G5 34" offers VESA mounting compatibility (100 x 100 mm or 75 x 75 mm) as the AM420B supports these VESA dimensions. - Make sure that the monitor does not weigh more than 9kg as this is the maximum payload of the mount. It is advisable to check the specific specifications of the monitor and mount directly with the manufacturers or in the user manuals to confirm compatibility.

Yes, it should work. But note that the smaller the monitor, the further back the mounting arm will be. This means that the desk may no longer be able to stand very close to the wall

Hello, yes, the monitor can be mounted on this stand.

You can use the AOC AM420B monitor mount with two Philips 328E1CA/00 monitors, but there are a few things to keep in mind: - The AM420B mount supports monitors ranging in size from 17" to 34". - The Philips 328E1CA/00 monitors have a size of 31.5", which is within the supported range. - The mount is compatible with VESA mounting sizes of 100 x 100 mm and 75 x 75 mm, and the Philips 328E1CA/00 monitors have a VESA mounting size of 100 x 100 mm. - Each monitor may weigh a maximum of 9kg and the Philips 328E1CA/00 monitors should be within this weight range. This means that the AOC AM420B monitor mount is generally compatible with Philips 328E1CA/00 monitors.

No, it is not possible to place two 32" monitors on top of each other with the AOC AM420B monitor mount. This mount is designed to hold two monitors next to each other, not on top of each other. - The AM420B supports monitors ranging in size from 17" to 34" and weighing from 2 to 9 kg per monitor, but they are designed for a side-by-side arrangement. - The mount offers ergonomic adjustment by tilting, rotating and pivoting, but not for a vertical arrangement of monitors.

Hello, the area is 90x170mm.

The AOC CU34G2XP/BK monitor is compatible with a wide range of monitor mounts, but there is no specific information confirming that it is specifically compatible with the AOC AM420B (desktop, 34") monitor mount. To ensure that the mount is compatible, you should take the following steps: - Check the VESA mounting compatibility of the monitor. The AOC CU34G2XP/BK supports VESA mounting (100mm x 100mm). - Make sure that the AM420B bracket supports these VESA dimensions. If the VESA dimensions match, it is likely that the monitor is compatible with the mount. However, it is advisable to check the specific specifications of the mount and the monitor directly with AOC or in the user manuals.

No, not possible.

To attach the AOC AM420B monitor arm to your desk with a desk wall, here are some important measurements and details: - The AOC AM420B monitor arm can be mounted with a C-Lamp or Grommet Mount. With both methods, the attachment to the table is relatively flat. - The C-Lamp method usually requires a shallow depth as the clamping mechanism grips directly onto the edge of the table. This type of attachment usually requires less than 5-7 cm depth, which should be sufficient in your case. - The exact length from the base to the clamping screw varies depending on the specific mounting method, but generally the base of the C-Lamp mount is relatively compact and should fit in your available space. It is important to note that the exact dimensions are not explicitly stated in the sources, but the descriptions indicate that the mounting methods are designed to fit most desk configurations, including those with a console wall.

The maximum load per arm for the AOC AM420B monitor mount is 9 kg (approximately 19.84 lbs) per monitor.

Yes, you can mount the monitor in portrait mode with the AOC AM420B monitor mount. The mount offers a pivot function that allows you to mount the monitor in portrait mode right from the start without having to rotate the monitor arm. The integrated swivel and pivot mechanism allows for flexible adjustment of the monitor position, including vertical alignment.

Yes.

The AOC AM420B monitor stand allows you to adjust the position of the monitor, but it does not support portrait mode. It is designed for use in landscape mode only.

The AOC AM420B monitor mount requires a VESA mounting surface on the monitor and a stable surface to attach it to. To attach the bracket to your desk, the screws or the mounting system of the bracket must fit into the 4cm wide surface. Mounting the AOC AM420B usually requires a firm and stable surface to support the load of the monitor. If the 4cm wide surface below the screw on the desk is sufficiently stable and suitable for the mounting screws, this could work. However, it is advisable to check the specific mounting requirements and dimensions of the bracket to ensure that it is compatible with your desk. If you are unsure, I recommend consulting the AOC AM420B mounting instructions or contacting the manufacturer directly to ensure the mount is secure and stable.

The arms are equipped with screws that allow you to adjust to the weight of the monitor. I have two 24" monitors and it is very stable.

This should fit without any problems. I have an LG 34GN850P, which at 819.20 mm is just as wide as the Odyssey G8, and a 32" monitor connected to the arm - although the latter is upright. But there is still plenty of room for manoeuvre and I think you could actually connect two 34" monitors if you wanted to.

Yes, a total of 8 star grip screws are included for mounting on the monitor.

Hello, I have a Dell C3422WE (also 34", but "only 7.30 kg): The holder holds, but I had to tighten the tension spring quite a bit. The holder can support the 9.4 kg. However, you lose the advantage of the height adjustment: you will always have the monitor at the lowest point. You'll have to decide for yourself whether that suits you...
